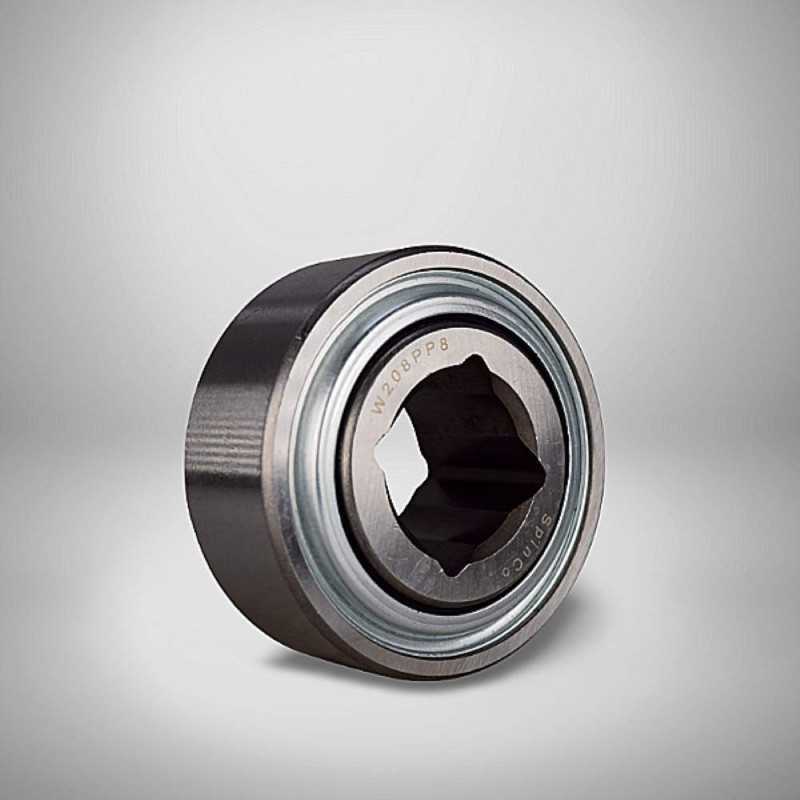

W208PP5 RICH 29,972x80x36,5

W208PP5 RICH Ball Bearing with Square Hole – 29.972 x 80 x 36.5 mm – Agricultural & Heavy-Duty Reliability

Technical Specifications:

• Bearing Type: Ball Bearing with Square Hole
• Model Designation: W208PP5
• Brand: RICH
• Precision Dimensions:
  • Square Bore (dk): 29.972 mm (-0.127 / +0.127 mm tolerance)
  • Outer Diameter (D): 80 mm
  • Inner Ring Width (B): 36.5 mm
  • Outer Ring Width (C): 18 mm
  • Shaft Size Compatibility: 28.575 mm
• Weight: 0.613 kg
• Outer Ring Profile: Cylindrical (not rounded)
• Sealing: Triple-lip seal, covered with metal plate on both sides (PP5) – suitable for heavily contaminated applications at low rotation speeds.
• Country of Manufacture: China
• Cross-Reference Part Numbers: 963.889 R91 CASE, JD9350 JOHN DEERE, PMCW208PP5 JOHN DEERE, 1025130M1 MASSEY FERGUSON, PS01002 MASSEY FERGUSON, 232 471 NEW HOLLAND, H747139 NEW HOLLAND

Experience unparalleled durability and performance in demanding agricultural and industrial applications with the W208PP5 RICH ball bearing with square hole! This specialized bearing is engineered to withstand extreme conditions, making it an ideal choice for machinery facing heavy contamination and variable loads. Its distinctive square bore of 29.972 mm (+0.127/-0.127 mm) is precisely designed for direct mounting onto square shafts, ensuring a secure, non-rotational fit crucial for power transmission in demanding equipment. A key feature is the robust triple-lip seal covered with a metal plate on both sides (PP5). This advanced sealing configuration provides exceptional protection against the ingress of severely contaminated media, including dust, dirt, moisture, and agricultural debris, while effectively retaining internal lubricant. This significantly extends the bearing's lifespan and reduces maintenance frequency, even in harsh operating environments with low rotation speeds.

With its precise dimensions of 29.972 mm square bore, 80 mm outer diameter, and an inner ring width of 36.5 mm (outer ring width of 18 mm), this RICH ball bearing is perfectly suited for agricultural equipment and various heavy-duty industrial applications requiring reliable power transmission and robust sealing. Its cylindrical (non-rounded) outer ring facilitates straightforward mounting in straight bore housings or adaptation to specific external configurations. This bearing is designed to replace common part numbers such as 963.889 R91 CASE, JD9350 JOHN DEERE, PMCW208PP5 JOHN DEERE, 1025130M1 MASSEY FERGUSON, PS01002 MASSEY FERGUSON, 232 471 NEW HOLLAND, and H747139 NEW HOLLAND, ensuring seamless interchangeability and trusted performance for your machinery.

Proudly manufactured by RICH in China, this quality ball bearing weighs 0.613 kg. Its potent combination of a specialized square bore, superior multi-lip sealing, and robust construction makes it an essential component for agricultural implements, heavy-duty conveyor systems, and other machinery operating in challenging conditions right here in Europe and across global industrial sectors.

Key Performance Advantages:

• Direct Square Shaft Mounting: The precise square bore enables direct, non-rotational mounting onto corresponding square shafts, simplifying assembly and ensuring reliable power transmission.
• Superior Contaminant Protection: Advanced triple-lip seals with metal covers provide exceptional defense against severe contamination (dust, dirt, moisture), significantly extending bearing life in harsh environments.
• Optimized for Low Rotation Speeds: The sealing design is specifically suited for applications with low rotational speeds and high contamination.
• Enhanced Durability: Robust construction ensures reliable performance and extended lifespan even under demanding operating conditions.
• Versatile Application: Ideal for agricultural machinery, heavy-duty conveyors, and other equipment operating in contaminated and challenging industrial settings.
• Seamless Interchangeability: Direct replacement for numerous OEM part numbers, facilitating easy integration and maintenance.
• RICH Quality Assurance: Manufactured in China by RICH, ensuring consistent adherence to stringent quality standards and delivering dependable functionality.
