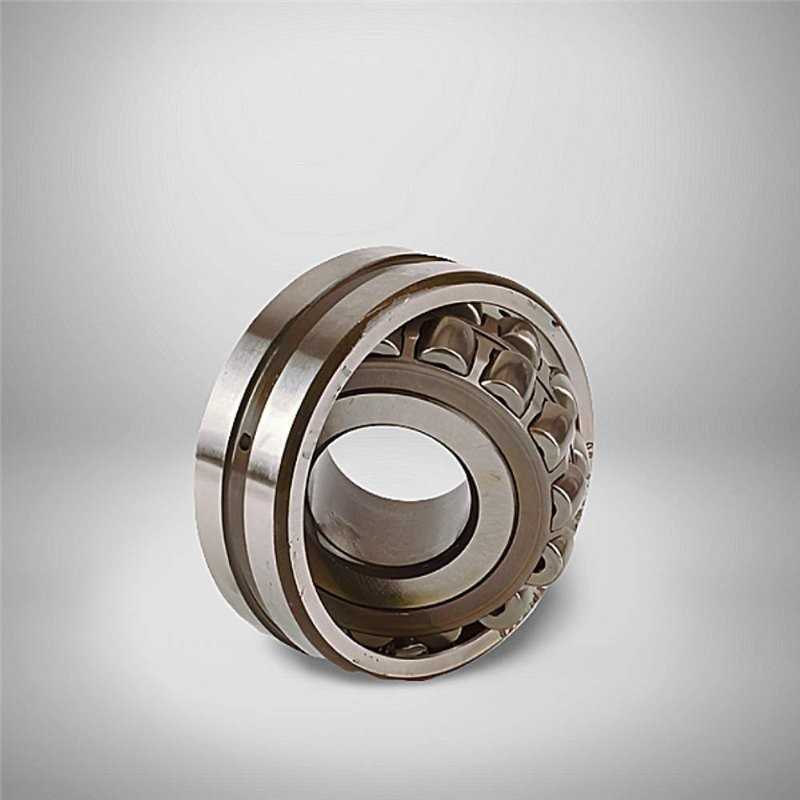

22214 EKW33J RICH Spherical Roller Bearing - 70 x 125 x 31 mm
Technical Specifications:
- Brand: RICH
- Type: Spherical Roller Bearing
- Dimensions: 70 x 125 x 31 mm
- Taper: Taper 1:12
- Cage: Steel
- Reinforced Execution: Yes
- Weight: 1.61 kg
- Country of Origin: China
The 22214EKW33J RICH is a robust and high-performance spherical roller bearing designed to operate reliably under extremely heavy radial and axial loads and is also engineered to accommodate misalignment. Its unique design features two rows of rollers with a common spherical outer ring raceway, allowing it to compensate for shaft or housing misalignment without loss of performance. The reinforced E execution provides a significantly higher load capacity, making it a powerful solution for the most demanding applications. The tapered bore (K suffix) with a 1:12 taper simplifies mounting onto a tapered shaft or with an adapter sleeve, while the W33 designation indicates a lubrication groove and holes on the outer ring for effective relubrication. The steel cage ensures durability and stability. The 22214EKW33J RICH is the ideal choice for heavy-duty machinery where high load, shock, and misalignment are common challenges.
Key Performance Advantages:
- Extreme Load Capacity: Engineered to handle very heavy radial and axial loads.
- Self-Aligning: Automatically compensates for shaft or housing misalignment.
- Optimized Mounting: The tapered bore simplifies installation with adapter sleeves.
- Enhanced Lubrication: The
W33feature facilitates relubrication for an extended service life. - RICH Quality: Engineered for precision and consistent performance under tough conditions.
Data sheet
Inner Diameter
70
Outer Diameter
125
Width
31
Weight
1,61
Roller Rows
Double Row
Clearance
CN (Normal)
