BH 1012 RICH 15,875x22,22x19,05 BH1012 RICH
search
  • BH 1012 RICH 15,875x22,22x19,05 BH1012 RICH

BH 1012 RICH 15,875x22,22x19,05

RICH
BH1012
€5.09
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

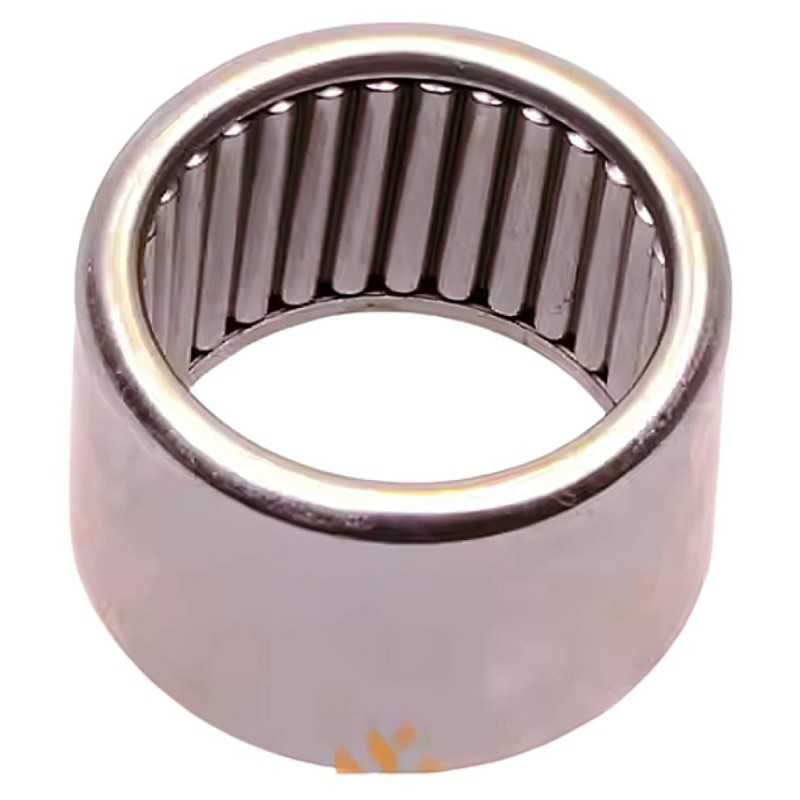

Needle Roller Bearing Without Inner Ring BH-1012 RICH - 15.875 x 22.22 x 19.05 mm

The BH-1012 RICH is a robust needle roller bearing without an inner ring, designed for applications where the shaft can be hardened and precision-ground to serve as the inner raceway. This design offers a compact radial cross-section, making it highly suitable for installations with limited space. This particular bearing operates without a cage, utilizing a full complement of needle rollers to maximize load carrying capacity. It is exceptionally effective in oscillating movements and situations requiring high radial load management within a confined envelope. Its dimensions are a 15.875 mm bore diameter, 22.22 mm outer diameter, and 19.05 mm width. It has a weight of 0.021 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing Without Inner Ring
  • Dimensions: 15.875 mm bore diameter x 22.22 mm outer diameter x 19.05 mm width
  • Weight: 0.021 kg
  • Cage: None (Full Complement)
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Extremely compact radial cross-section
  • High load-carrying capacity due to full complement design
  • Ideal when the shaft can act as the inner raceway
  • Suitable for oscillating movements and high radial loads
  • Economical solution for space-constrained designs

Data sheet

Inner Diameter
15.875
Outer Diameter
22.212
Width
19,05
Weight
0,021
Category
Needle Roller Bearing Without Inner Rin
