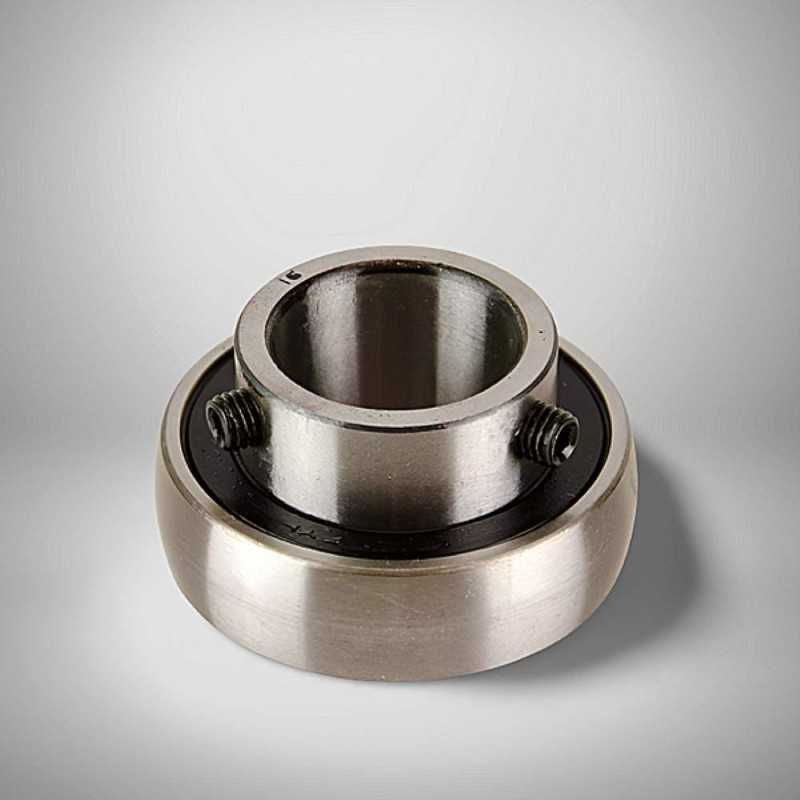

SB207-22 RICH Insert Ball Bearing - 34.925 x 72 x 32 mm

The SB207-22 RICH is a high-quality insert ball bearing, meticulously manufactured by RICH in China. This versatile bearing is designed for straightforward mounting in bearing units and provides reliable performance across various industrial applications. With precise dimensions of a 34.925 mm bore (equivalent to 1-3/8 inch), a 72 mm outer diameter, and a 32 mm width, it ensures optimal fitting and smooth operation.

This RICH insert ball bearing features an inner ring width (B) of 32 mm and an outer ring width (C) of 17 mm. The extended inner ring has a distance from the face to the grub screw (S1) of 23.5 mm, and a distance from the opposite face to the grub screw (S2) of 6 mm. The minimum chamfer dimension (r min.) is 1.1 mm. It is equipped with a 1/4-28UNF thread (G), facilitating secure mounting.

Weighing 0.42 kg, this robust yet efficient component from RICH ensures consistent and durable operation. It is ideally suited for applications requiring reliable rotation, such as agricultural machinery, conveying systems, and general industrial equipment, where precise dimensions and strong performance are essential.

Key Specifications:

  • Type: Insert Ball Bearing
  • Brand: RICH
  • Model: SB207-22 RICH
  • Dimensions: 34.925 mm bore x 72 mm outer diameter x 32 mm width
  • Bore Diameter (d): 34.925 mm
  • Outer Diameter (D): 72 mm
  • Width (B): 32 mm
  • Outer Ring Width (C): 17 mm
  • Distance S1: 23.5 mm
  • Distance S2: 6 mm
  • Minimum Chamfer (r min.): 1.1 mm
  • Thread (G): 1/4-28UNF
  • Weight: 0.42 kg
  • Country of Origin: China

Key Advantages:

  • Versatile Performance: Suitable for a wide array of industrial applications, offering reliable rotation and load support.
  • Optimal Dimensions: Precisely engineered to 34.925 x 72 x 32 mm for accurate fitting.
  • Secure Mounting: Features a 1/4-28UNF thread for robust attachment.
  • Durable Construction: Ensures long-lasting performance and high operational reliability.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.

Data sheet

Inner Diameter
34,925
Outer Diameter
72
Width
32
Weight
0,42
