52214 RICH 55x105x47

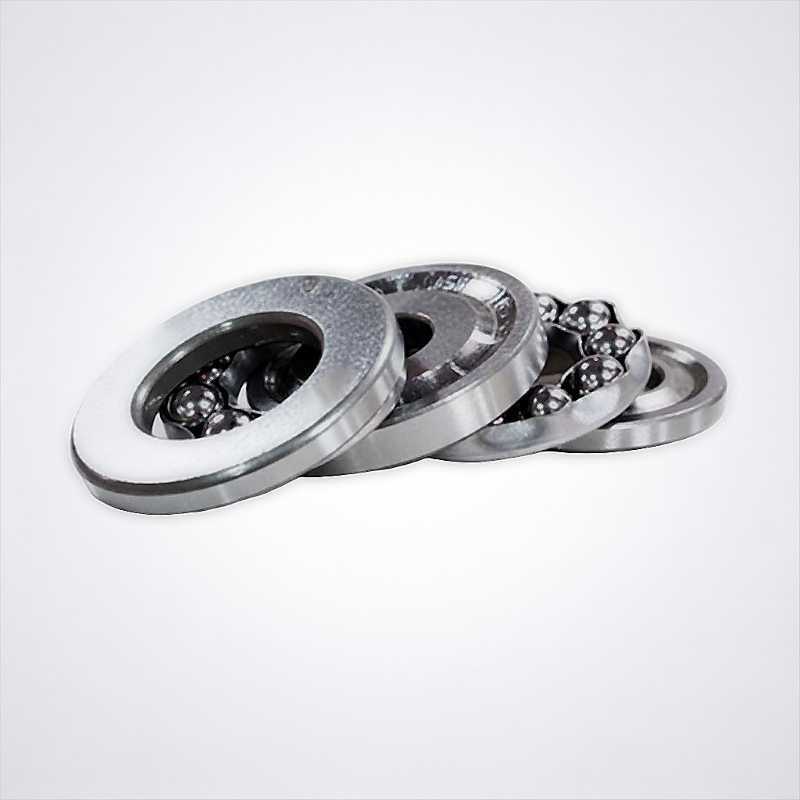

52214 RICH – Axial Deep Groove Ball Bearing – 55 x 105 x 47 mm

Technical Specifications:

• Type: Axial deep groove ball bearing
• Brand: RICH
• Model Designation: 52214
• Inner Diameter (d): 55 mm
• Outer Diameter (D): 105 mm
• Height (T): 47 mm
• Cage Material: Steel
• Sealing: Open
• Weight: 1.43 kg
• Country of Origin: China

Product Details:

• Components: Consists of one centralized shaft washer (inner ring), two housing washers (outer rings) with flat seating faces, and two separate steel ball-and-cage thrust assemblies.
• Internal Geometry: Designed as a double-direction thrust configuration containing deep, high-conformity raceway grooves that enable the assembly to locate the shaft axially and sustain significant thrust loads in both directions, while remaining strictly non-yielding to radial forces.
• Dimensional Set: Standardized metric 522-series multi-part architecture featuring a 55 mm shaft bore diameter, a 105 mm housing washer outside diameter, and a 47 mm total assembled height section.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
