SB204-12 RICH 19,05x47x25

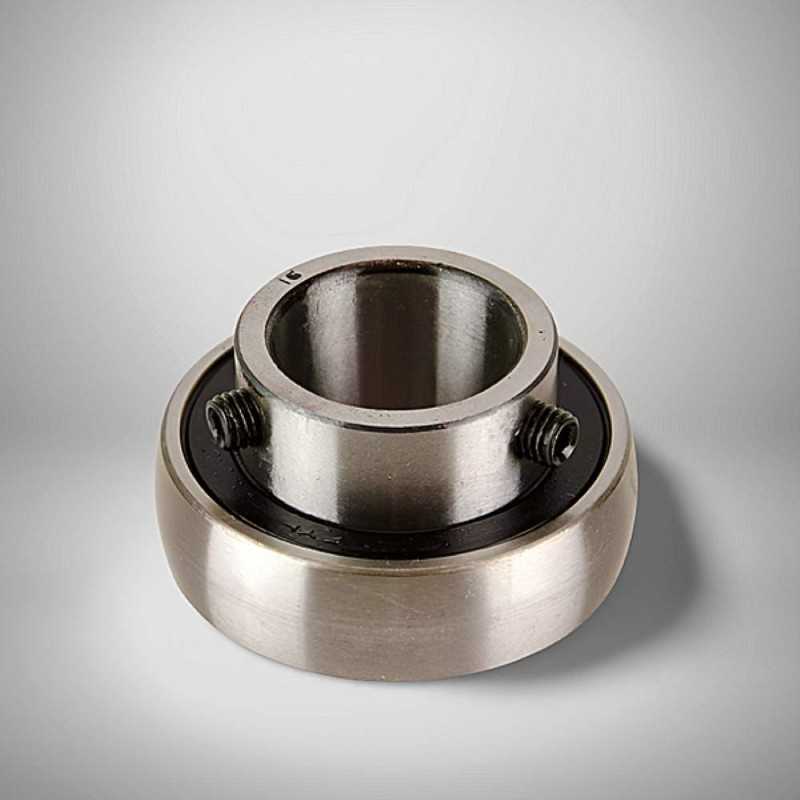

SB 204-12 RICH Insert Ball Bearing - 19.05 x 47 x 25 mm

The SB 204-12 RICH is a high-quality insert ball bearing, meticulously manufactured by RICH in China. This bearing is designed for straightforward mounting in bearing units and provides reliable performance across various industrial applications. With precise dimensions of a 19.05 mm bore (equivalent to 3/4 inch), a 47 mm outer diameter, and a 25 mm width, it ensures optimal fit and smooth operation.

This RICH insert ball bearing features a rounded outer ring, which facilitates self-alignment within compatible housings and helps accommodate minor shaft misalignments. The inner ring has a width of 27 mm, while the outer ring's width (C) is 14 mm. For enhanced protection, it comes equipped with double-sided lip seals covered with a plate, effectively shielding the internal components from dust, dirt, and moisture, while retaining lubrication. This robust sealing significantly contributes to the bearing's extended service life and reduced maintenance needs, making it suitable for environments where contamination is a concern.

Weighing just 0.13 kg, this lightweight yet durable component from RICH offers consistent and efficient rotational support. It's ideally suited for a wide array of general industrial and agricultural machinery where ease of installation, robust performance, and reliable protection against contaminants are crucial.

Key Specifications:

• Type: Insert Ball Bearing
• Brand: RICH
• Model: SB 204-12 RICH
• Dimensions: 19.05 mm bore x 47 mm outer diameter x 25 mm width
• Bore Diameter (d): 19.05 mm
• Outer Diameter (D): 47 mm
• Width: 25 mm
• Inner Ring Width: 27 mm
• Outer Ring Width (C): 14 mm
• Rounded Outer Ring: Yes
• Sealing: Double-sided lip seal covered with a plate
• Weight: 0.13 kg
• Country of Origin: China

Key Advantages:

• Ease of Installation: Designed as an insert bearing for straightforward mounting into compatible housings.
• Self-Aligning Capability: The rounded outer ring allows for minor shaft misalignments, reducing stress on the bearing.
• Enhanced Sealing: Double-sided lip seals with protective plates offer superior defense against contaminants, extending bearing life.
• Versatile Application: Suitable for a broad range of general industrial and agricultural machinery.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
