KLNJ1/4-2RS RICH 6,35x19,05x7,142
Rating:
(0)
EUR €
- EUR €
- USD $

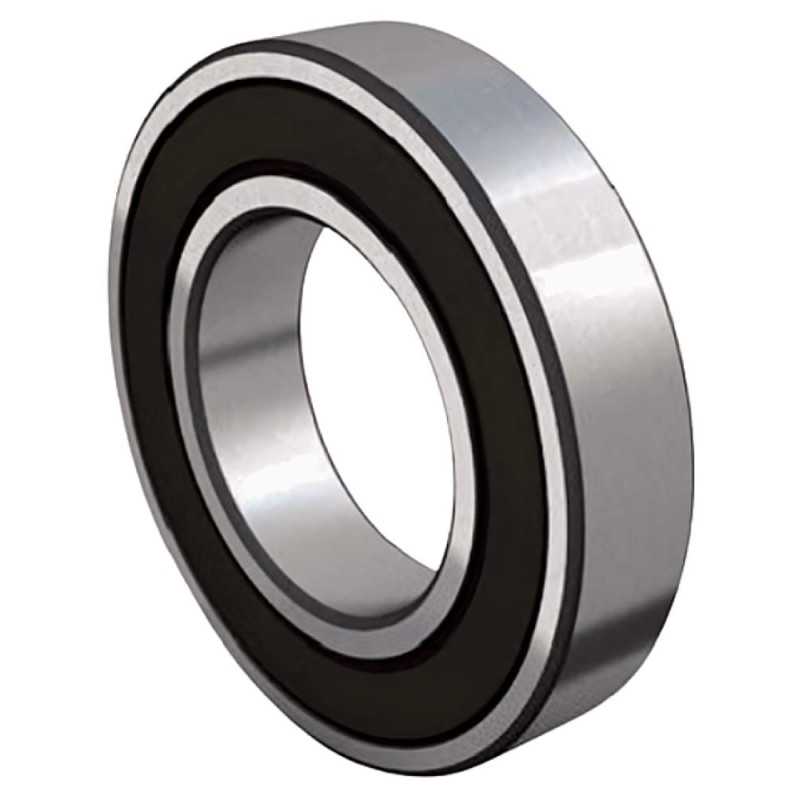

Single Row Deep Groove Ball Bearing KLNJ1/4 2RS RICH - 6.35 x 19.05 x 7.142 mm (Sealed)
The KLNJ1/4 2RS RICH is a single row deep groove ball bearing, a versatile type designed to handle both radial and axial loads in both directions. It features deep raceway grooves and close conformity between the raceway grooves and the balls, enabling it to accommodate moderate to high speeds while providing quiet and efficient operation. This particular bearing comes with double-sided rubber contact seals (2RS), offering excellent protection against contaminants like dust, dirt, and moisture, and effectively retaining internal lubrication. This sealing extends the bearing's service life and reduces maintenance, especially in challenging environments. It has a normal radial clearance (CN), suitable for most applications. Its dimensions are a 6.35 mm bore diameter, 19.05 mm outer diameter, and 7.142 mm width, with a weight of 0.01 kg. This product is manufactured in China by RICH.
Key Specifications:
- Type: Single Row Deep Groove Ball Bearing
- Dimensions: 6.35 mm bore diameter x 19.05 mm outer diameter x 7.142 mm width
- Weight: 0.01 kg
- Clearance: CN - Normal clearance
- Sealing: Double-sided rubber, contact (2RS)
- Country of Origin: China
- Brand: RICH
Key Advantages:
- Versatile for radial and axial loads
- Suitable for moderate to high speeds
- Quiet and efficient operation
- Excellent protection against contaminants with 2RS seals
- Reduced maintenance due to retained lubrication
- Standard normal clearance for general applications
- Economical and widely applicable
Data sheet
Inner Diameter
6,35
Outer Diameter
19,05
Width
7.142
Weight
0,01
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
