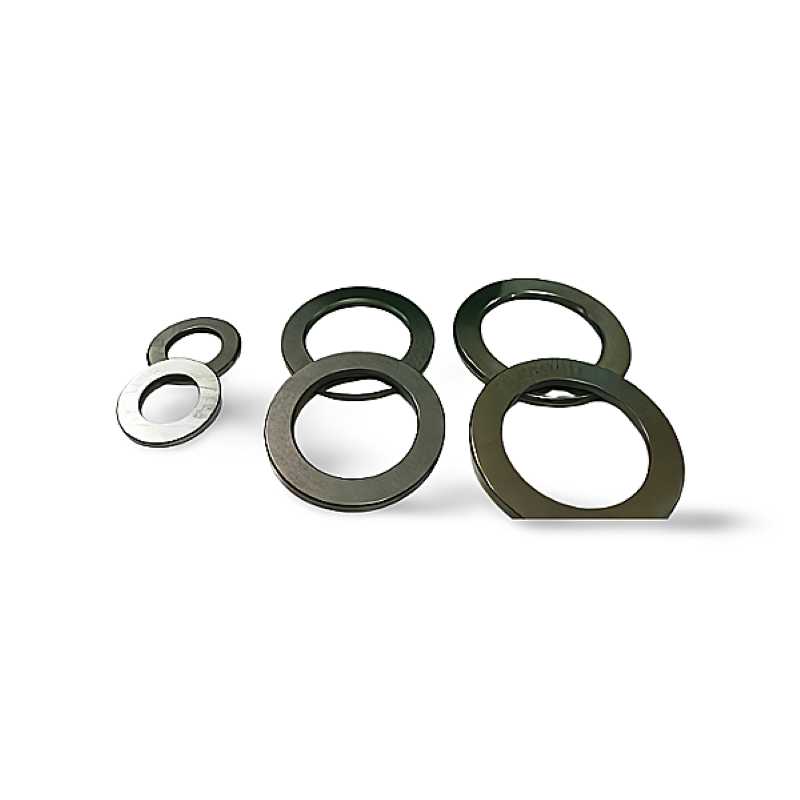

LS 120155 RICH Axial Bearing Washer - 120 x 155 x 7 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 120155
  • Brand: RICH
  • Bore Diameter (d): 120 mm
  • Outer Diameter (D): 155 mm
  • Thickness (H): 7 mm
  • Weight: 0.397 kg
  • Country of Origin: China

The LS 120155 RICH is a heavy-duty axial bearing washer precision-engineered to provide an optimal, hardened raceway surface. This washer is crucial for effective use with axial (thrust) needle roller and cage assemblies in industrial applications where the adjoining machine components are not suitable to serve as the bearing raceway due to insufficient hardness or surface finish. With large dimensions of 120 mm bore, 155 mm outer diameter, and a substantial 7 mm thickness, the LS 120155 RICH is built to facilitate high axial load capacity and minimize friction. This robust component ensures the reliable and extended service life of the corresponding thrust bearing in large and demanding machinery.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • High Axial Load Capacity: Supports smooth operation under significant thrust forces.
  • Heavy-Duty Design: Large dimensions and thickness ensure stability in high-stress applications.
  • Versatility: Can be used as either a shaft or housing washer (AS or WS) for needle roller thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
120
Outer Diameter
155
Width
7
Weight
0,397
Category
Axial Bearing Washer
