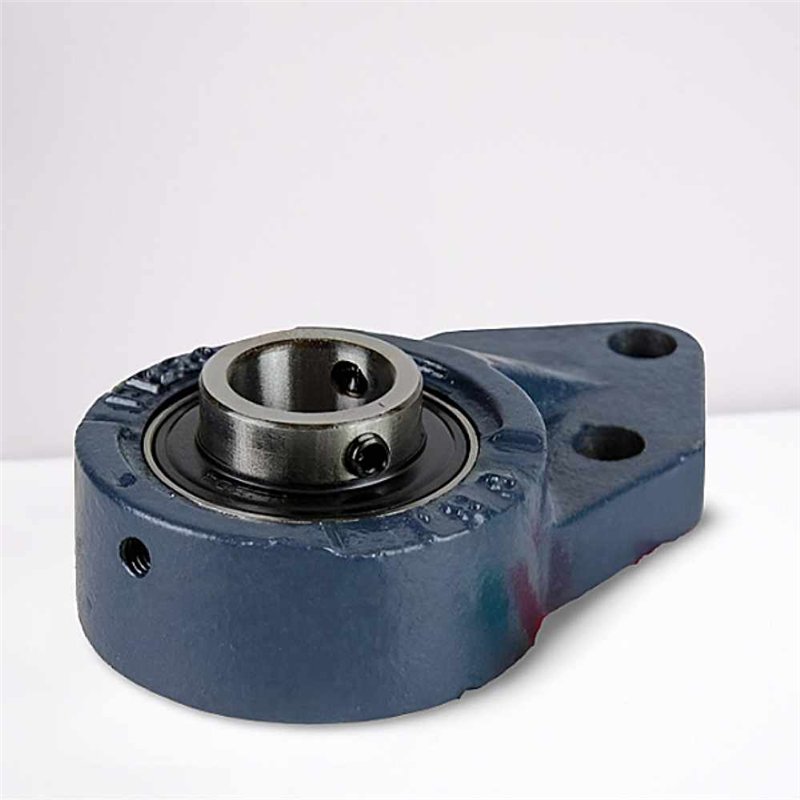

UCFB 205 RICH Cast Iron Flanged Bearing Unit - 25 mm Bore

Technical Specifications:

  • Brand: RICH
  • Type: Cast Iron Flanged Bearing Unit (Square)
  • Model: UCFB 205
  • Inner Diameter (d): 25 mm
  • Housing Material: Cast Iron
  • Overall Width (L): 68 mm
  • Overall Height (H): 45 mm
  • Bolt Hole Spacing (J): 34 mm
  • Dimension (A): 27 mm
  • Dimension (A1): 13 mm
  • Dimension (H1): 27 mm
  • Dimension (L2): 34 mm
  • Dimension (N): 10 mm
  • Dimension (F2): 116 mm
  • Weight: 0.706 kg
  • Country of Origin: China

The UCFB 205 RICH is a robust Cast Iron Flanged Bearing Unit manufactured by RICH. This unit features a heavy-duty, square cast iron housing that guarantees stable operation and simplified four-bolt mounting onto machine structures.

Engineered to accommodate a 25 mm shaft, the UCFB 205 RICH provides reliable support for industrial power transmission systems such as conveyors, mixers, and processing equipment where sustained load and high rigidity are required. The dense cast iron construction ensures excellent vibration damping and structural strength. With compact dimensions (68 x 45 mm) and precision engineering, this unit is a durable and space-efficient choice for demanding industrial environments.

Key Performance Advantages:

  • Robust Construction: Heavy-duty cast iron housing provides superior structural strength and vibration damping.
  • Simplified Mounting: Square flanged design allows for easy, secure four-bolt installation on flat surfaces.
  • Shaft Compatibility: Precision-engineered for a 25 mm shaft diameter (UC 205 insert).
  • Industrial Reliability: Durable solution ideal for demanding applications like conveyors and machinery.

Data sheet

Inner Diameter
25
