81102 TN RICH 15x28x9

RICH
81102TN
€2.92
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

81102 TN RICH Axial Cylindrical Roller Bearing - 15 x 28 x 9 mm

Technical Specifications:

  • Brand: RICH
  • Type: Axial Cylindrical Roller Bearing (Thrust Bearing)
  • Model: 81102 TN
  • Dimensions: 15 x 28 x 9 mm
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 28 mm
  • Height (H): 9 mm
  • Weight: 0.03 kg
  • Cage Material: Polyamide (TN)
  • Country of Origin: China

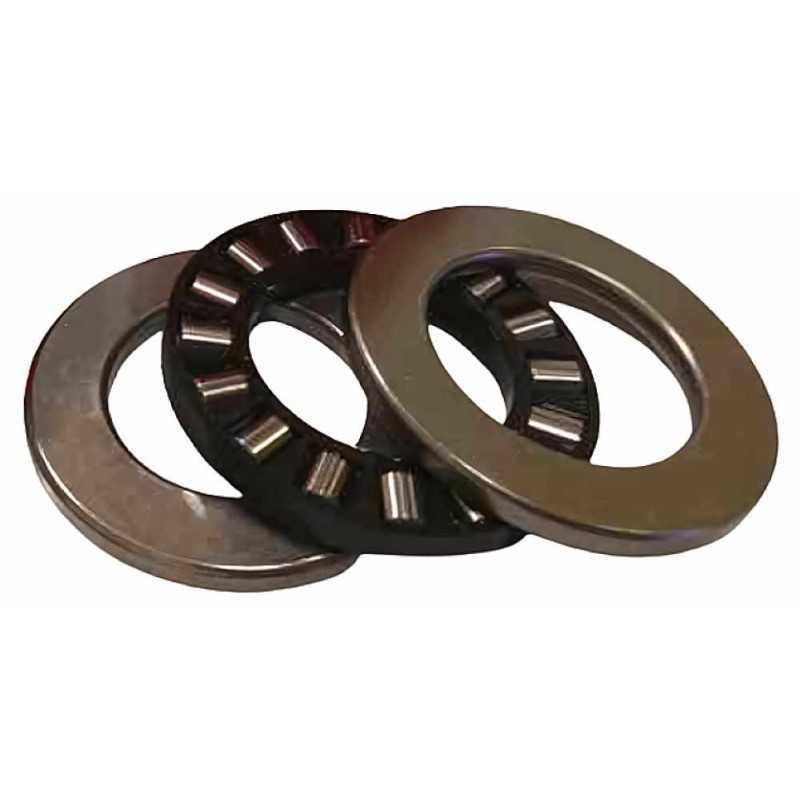

The 81102 TN RICH is a precision Axial Cylindrical Roller Bearing designed exclusively to handle very high axial (thrust) loads in one direction. The assembly comprises a shaft washer, a housing washer, and a cylindrical roller and cage assembly. The use of a lightweight polyamide cage (TN) provides benefits such as low friction and high speed capability. With compact dimensions of 15 x 28 x 9 mm, the 81102 TN RICH provides a durable, high-capacity thrust solution in a small envelope.

Key Performance Advantages:

  • High Axial Load Capacity: Engineered with cylindrical rollers for superior support of heavy unidirectional thrust loads.
  • High Speed Capability: The lightweight polyamide cage (TN) permits higher operating speeds compared to traditional metal cages.
  • Compact Design: Provides significant load capacity despite its small axial height of 9 mm.
  • Separable Components: The design allows the components to be mounted independently, simplifying installation.

Data sheet

Inner Diameter
15
Outer Diameter
28
Width
9
Weight
0,03
Roller Rows
Single Row
Cage
Polyamide Cage
