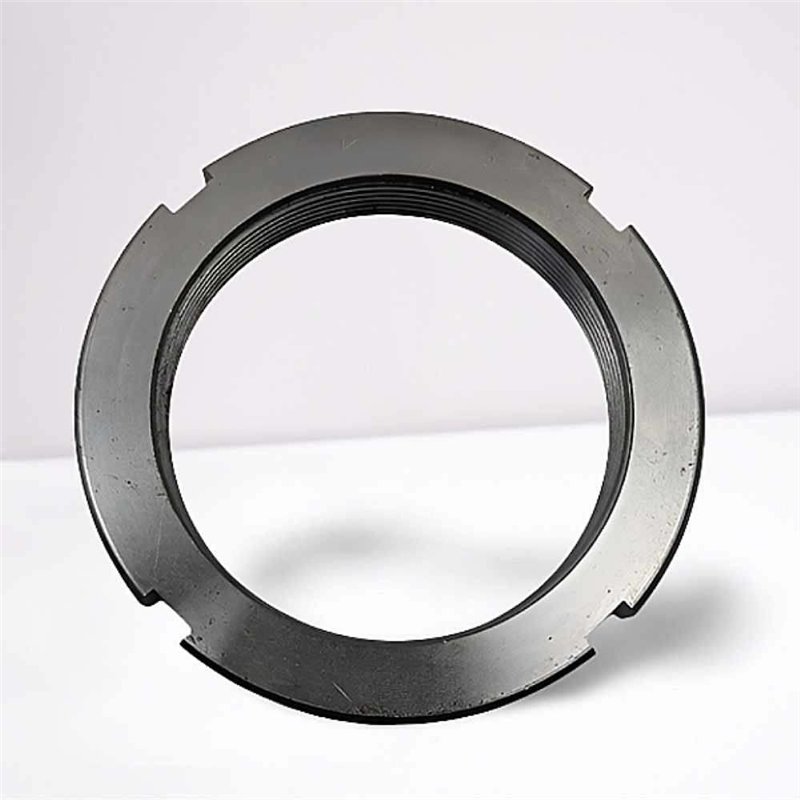

KM 16 RICH Locknut - 80 x 105 x 15 mm
Technical Specifications:
- Product Type: Locknut
- Model Designation: KM 16
- Brand: RICH
- Thread Size: M80x2
- Bore Diameter (d): 80 mm
- Outer Diameter (D): 105 mm
- Width (B): 15 mm
- Weight: 0.402 kg
- Country of Origin: China
The KM 16 RICH is a standard locknut designed to be used with corresponding lock washers (not included) to reliably secure rolling bearings, sleeves, and other components onto a shaft. This robust component features an M80x2 thread and provides essential axial support to maintain the correct positioning of assemblies. With precise dimensions of 80 mm bore, 105 mm outer diameter, and 15 mm width, the KM 16 RICH offers a dependable solution for mounting and setting the clearance or preload of large bearing arrangements in demanding industrial machinery.
Key Performance Advantages:
- Secure Axial Positioning: Effectively locks components against axial movement on the shaft.
- Standard Thread: Features an M80x2 thread for common industrial applications.
- Robust Dimensions: Reliable size (80 x 105 x 15 mm) ensures proper fitment for larger shafts.
- RICH Quality: A reliable retaining nut for ensuring assembly integrity and performance.
Data sheet
Inner Diameter
80
Outer Diameter
105
Width
15
Weight
0,402
Category
Locknut
