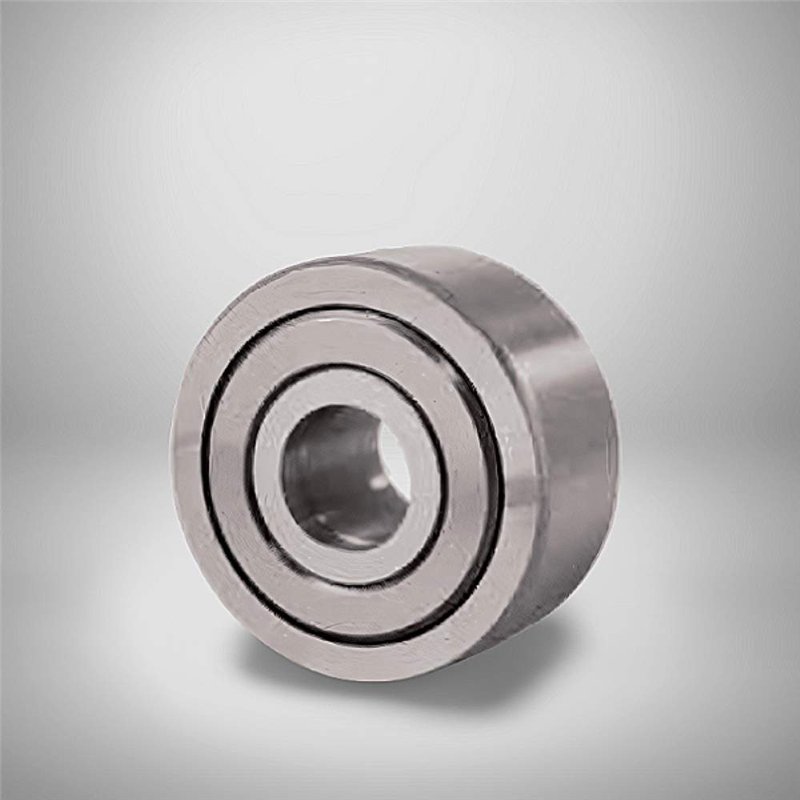

NATV 15-PP RICH 15x35x19

NATV15-PP RICH Yoke Roller – 15 x 35 x 19 mm – Heavy-Duty Performance for Cam & Track Systems

Optimize the durability and precision of your demanding cam and track applications with the NATV15-PP RICH yoke roller! This robust, high-capacity track roller is meticulously engineered for exceptional performance in environments requiring reliable guidance and the ability to withstand substantial radial loads. A key design advantage is its rounded outer ring, meticulously crafted to ensure superior contact with the track, thereby minimizing stress concentrations and promoting remarkably smooth, quiet operation. This not only enhances the roller's own lifespan but also contributes to the longevity and efficiency of the entire track system it supports. Further enhancing its resilience, the integrated double-sided rubber contact seals (PP) create a formidable barrier, effectively protecting the internal components from the ingress of detrimental contaminants like dust, debris, and moisture, while securely retaining crucial internal lubrication. This comprehensive sealing translates directly into significantly reduced maintenance requirements and extended service intervals, maximizing your operational uptime.

With its precise dimensions of 15 mm inner diameter, 35 mm outer diameter, and a body width of 19 mm (outer ring width of 18 mm), this RICH yoke roller offers versatile and secure integration into a wide range of industrial machinery. Designed without a cage, it features a full complement of needle rollers, maximizing its radial load capacity within its compact form factor.

Proudly manufactured by RICH in China, this quality yoke roller weighs 0.104 kg. Its potent combination of robust sealing, a rounded outer ring for flawless tracking, and an exceptional load capacity makes it an indispensable component for heavy-duty conveyor systems, complex automated production lines, advanced packaging machinery, and various other track-guided industrial applications right here in Europe and across global industrial sectors.

Technical Specifications:

• Bearing Type: Yoke Roller
• Model Designation: NATV15-PP
• Brand: RICH
• Precision Dimensions:
  • Inner Diameter: 15 mm
  • Outer Diameter: 35 mm
  • Overall Width (B): 19 mm
  • Outer Ring Width (C): 18 mm
• Weight: 0.104 kg
• Cage: None (Full Complement Needle Rollers)
• Outer Ring Profile: Rounded
• Sealing: Double-sided Rubber, Contact Seals (PP)
• Country of Manufacture: China

Key Performance Advantages:

• Exceptional Track Guidance: The rounded outer ring ensures remarkably smooth and precise operation along tracks and cams, significantly extending the life of both the roller and the track.
• Superior Environmental Protection: Double-sided rubber contact seals (PP) provide an impenetrable barrier against dust, moisture, and other contaminants, greatly enhancing bearing lifespan and reliability.
• Maximized Radial Load Capacity: The full complement design (no cage) allows for the highest possible number of needle rollers, delivering outstanding radial load capability in a compact design.
• Reduced Maintenance Demands: Highly effective sealing and optimal lubricant retention lead to extended operational periods between service, maximizing uptime and reducing operational costs.
• Robust & Durable Construction: Engineered for sustained, heavy-duty performance and exceptional reliability even in the most challenging industrial environments.
• Versatile Integration: Ideal for a broad spectrum of demanding applications, including material handling, advanced automation, and specialized machinery with track guidance.
• RICH Quality Assurance: Manufactured in China by RICH, ensuring consistent adherence to stringent quality standards and delivering dependable functionality.
