  • AS 1528 RICH 15x28x1 AS1528 RICH

AS 1528 RICH 15x28x1

RICH
AS1528
€0.12
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

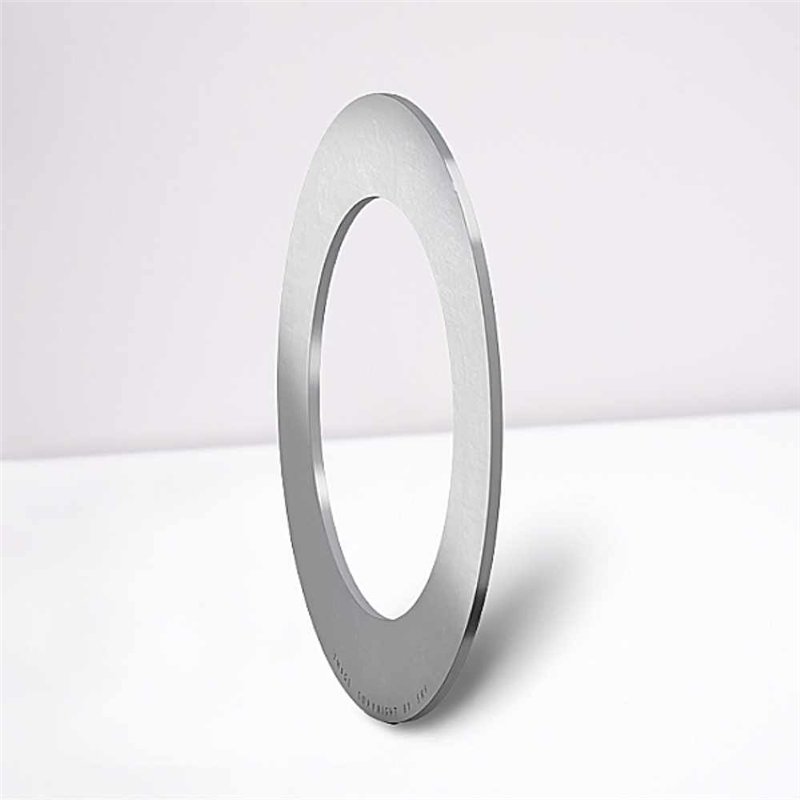

AS 1528 RICH Axial Bearing Washer - 15 x 28 x 1 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: AS 1528
  • Brand: RICH
  • Bore Diameter (d): 15 mm
  • Outer Diameter (D): 28 mm
  • Thickness (H): 1 mm
  • Weight: 0.003 kg
  • Country of Origin: China

The AS 1528 RICH is a precision-manufactured axial bearing washer, produced by RICH to serve as a high-quality raceway for axial needle roller and cage assemblies (such as the AXK series). Its precise dimensions of 15 mm bore, 28 mm outer diameter, and a slim 1 mm thickness ensure minimal axial space occupation while providing a hardened, flat, and rigid running surface. This component is essential when adjacent machine components cannot be used as raceways due to required hardness or flatness, allowing for easy installation and removal. The washer is designed to support heavy axial loads and maintain stability in the bearing arrangement.

Key Performance Advantages:

  • High-Precision Raceways: Provides an optimal, hardened running surface for axial needle rollers.
  • Minimal Axial Space: Extremely thin profile (1 mm thickness) for use in compact bearing arrangements.
  • Easy Installation: Simplifies assembly by providing a separable component.
  • RICH Quality: Ensures high rigidity and support for heavy axial loads.

Data sheet

Inner Diameter
15
Outer Diameter
28
Width
1
Weight
0,003
Category
Axial Bearing Washer
