484/472 RICH 70x120x29,002

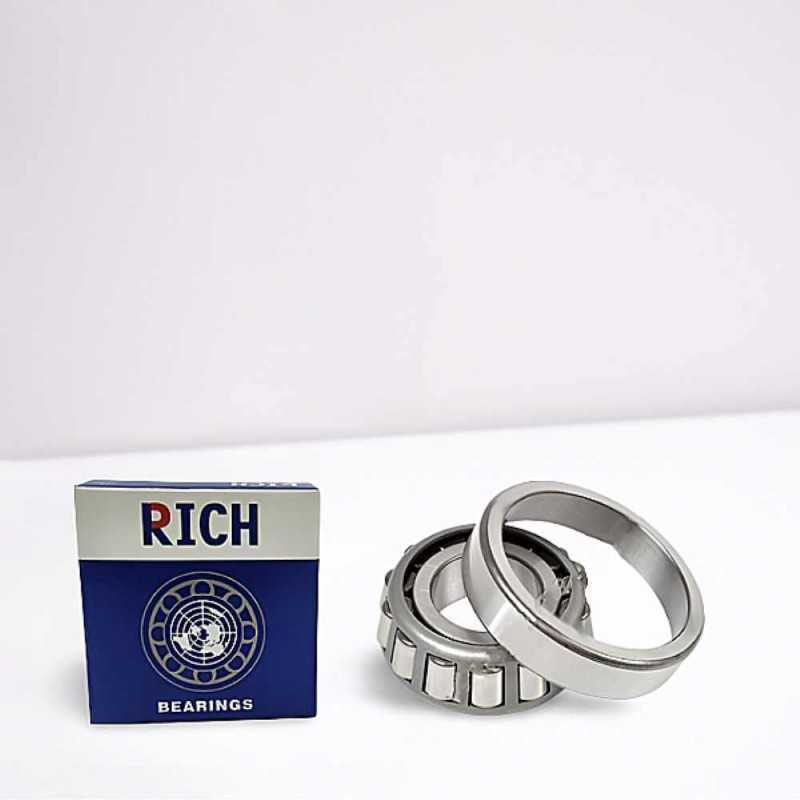

484/472 RICH Single Row Tapered Roller Bearing - 70 x 120 x 29.002 mm

Technical Specifications:

• Brand: RICH
• Type: Single Row Tapered Roller Bearing
• Model: 484/472
• Dimensions (ID x OD x T): 70 x 120 x 29.002 mm
• Inner Diameter (ID): 70 mm
• Outer Diameter (OD): 120 mm
• Assembly Width (T): 29.002 mm
• Outer Ring Width (C): 23.444 mm
• Inner Ring Width: 29.007 mm
• R1 - Rounding Radius: 2 mm
• R2 - Rounding Radius: 3.3 mm
• Weight: 1.277 kg
• Country of Origin: China

The 484/472 RICH is a robust Single Row Tapered Roller Bearing manufactured by RICH, specifically designed to efficiently manage heavy combined loads—simultaneously handling both large radial forces and high axial forces in one direction. With dimensions of 70 x 120 x 29.002 mm (ID x OD x T), this bearing is ideal for applications requiring exceptional stiffness and durability.

This bearing features tapered rollers and raceways arranged so that the roller axes and raceway axes meet at a common point on the bearing's axis of rotation, enabling the high capacity for combined loading. The model has a total assembly width (T) of 29.002 mm, providing a compact yet powerful solution. The 484/472 RICH is widely used in automotive hubs, gearboxes, differentials, and industrial machinery where precise alignment and reliable performance under severe operating conditions are mandatory.

Key Performance Advantages:

• High Combined Load Capacity: Excellently suited for heavy radial and axial loads.
• Precision Geometry: Tapered design ensures optimal rolling motion and reduced friction.
• Separable Components: The inner ring assembly (cone) and outer ring (cup) are separable for easier mounting and dismounting.
• Durable Construction: Manufactured for longevity and reliable operation in harsh environments.
