UCP 201 RICH

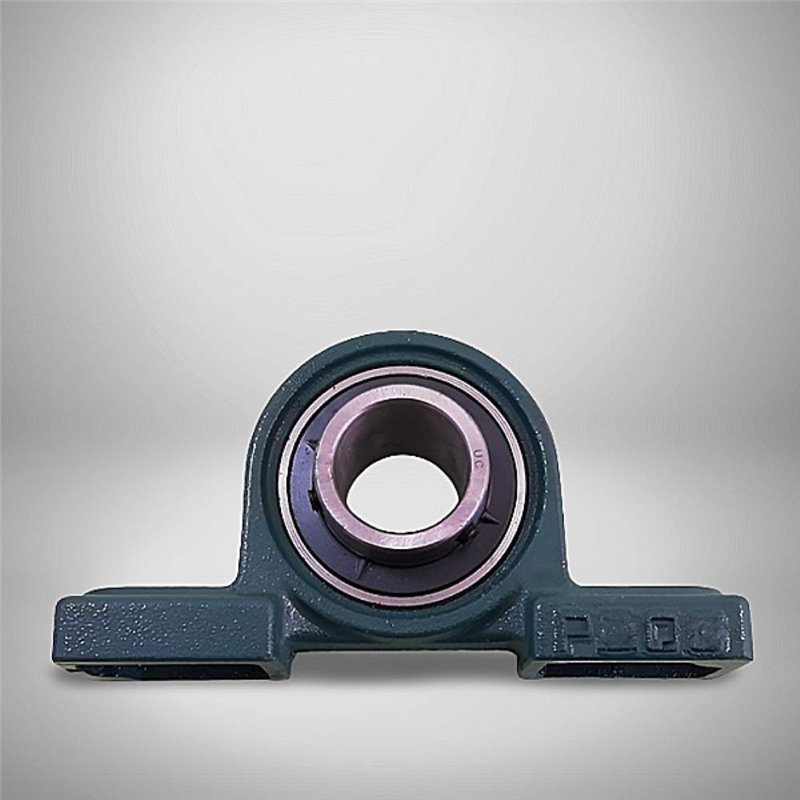

UCP201 RICH Cast Iron Pillow Block Bearing Unit – 12 mm Bore – Cast Iron Pillow Block Bearing Unit – Enhanced Protection & Robust Support

Technical Specifications:

• Type: Cast Iron Pillow Block Bearing Unit
• Brand: RICH
• Model Designation: UCP201 RICH
• Bore Diameter (d): 12 mm
• Overall Length (L): 127 mm
• Mounting Hole Center Distance (J): 95 mm
• Overall Height (A): 38 mm
• Base to Center Height (A1): 22 mm
• Bolt Hole Width (F): 30.2 mm
• Flange Width (F2): 62 mm
• Weight: 0.64 kg
• Cage Material: Steel
• Internal Clearance: C3 (Greater than Normal)
• Sealing: Double-sided lip seal covered with steel sheet washers, featuring an outer flinger shield with corrosion protection.
• Country of Origin: China

The UCP201 RICH cast iron pillow block bearing unit is a high-performance solution, meticulously engineered to provide exceptional shaft support and durability across a diverse range of industrial applications. Manufactured by RICH, this unit features a robust cast iron housing that encases a precision deep groove ball bearing, expertly designed to efficiently manage both radial and axial loads. With its 12 mm bore diameter, it is perfectly suited for smaller shafts requiring reliable, fixed mounting points.

A defining characteristic of this RICH bearing unit is its advanced double-sided lip seal system, further reinforced with steel sheet washers and an outer flinger shield to offer superior corrosion protection. This comprehensive sealing mechanism ensures excellent defense against ingress from dust, moisture, and other environmental contaminants, significantly extending the bearing's service life and reducing overall maintenance requirements. The C3 (Greater than Normal) internal clearance allows for optimal performance under conditions that involve thermal expansion or slight shaft misalignment. Built with a durable steel cage and produced in China under stringent quality controls, the UCP201 RICH unit consistently delivers unwavering reliability and precise functionality, making it an indispensable component for enhancing the efficiency and longevity of your mechanical systems.

Key Advantages:

• Robust Cast Iron Housing: Provides exceptional strength and stability for demanding operational environments.
• Advanced Sealing System: Double-sided lip seals with steel washers and flinger shield offer superior protection against contaminants and corrosion.
• Optimal Clearance (C3): Designed for reliable performance in applications with thermal variations or minor misalignments.
• Easy Installation: Simplifies setup with a straightforward bolt-down mounting design.
• Reliable Performance: Ensures smooth, consistent operation with minimal friction.
• A RICH product, symbolizing consistent quality and reliability, and manufactured in China.
