SX011824 RICH 120x150x16

Achieve high precision and stability with the SX011824 RICH crossed roller bearing, designed for complex loads.

RICH
SX011824
€120.02
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

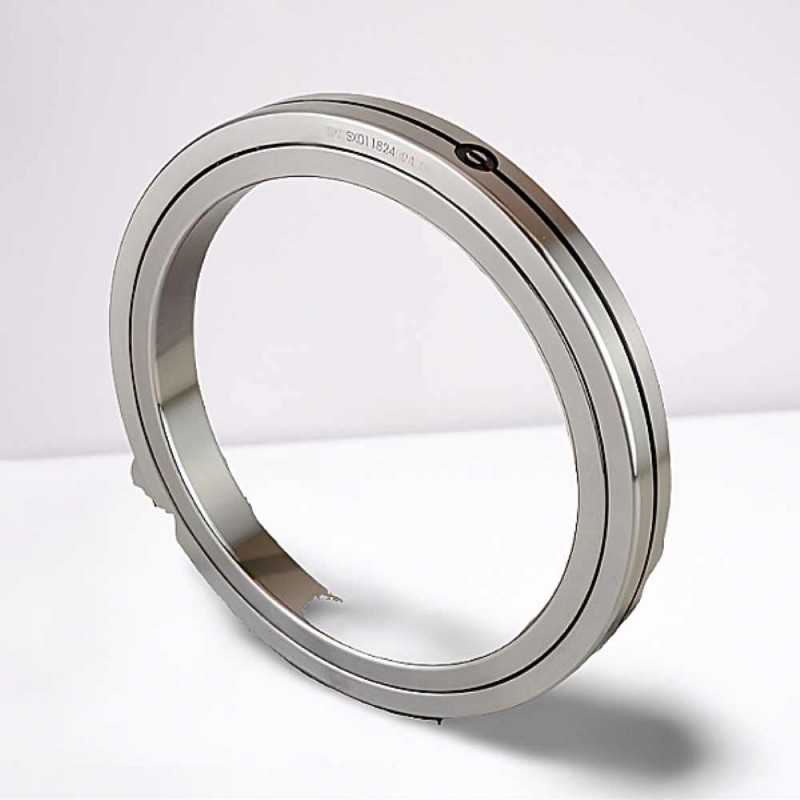

SX011824 RICH Crossed Roller Bearing - 120 x 150 x 16 mm

Technical Specifications:

  • Bearing Type: Crossed Roller Bearing
  • Model Designation: SX011824
  • Brand: RICH
  • Dimensions: 120 x 150 x 16 mm
  • Inner Diameter (d): 120 mm
  • Outer Diameter (D): 150 mm
  • Width (B): 16 mm
  • Weight: 0.839 kg

The SX011824 RICH crossed roller bearing is a high-precision bearing designed for applications requiring exceptional rigidity and accuracy. Its unique design features cylindrical rollers arranged at a 90-degree angle to each other, allowing a single bearing to handle combined radial, axial, and moment loads simultaneously. With precise dimensions of 120 mm inner diameter, 150 mm outer diameter, and a width of 16 mm, this bearing provides a compact and efficient solution. Weighing 0.839 kg, this high-quality RICH bearing is ideal for demanding applications such as robotic arms, medical equipment, and precision machinery.

Key Performance Advantages:

  • High Rigidity: Maintains a stable and precise rotation under complex loads.
  • Space-Saving Design: A single bearing handles multiple load types, reducing the need for multiple components.
  • Precision Engineering: Ensures accurate and smooth movement.
  • High Load Capacity: Effectively manages radial, axial, and moment loads simultaneously.
  • RICH Quality: Designed to high standards for dependable operation.

Data sheet

Inner Diameter
120
Outer Diameter
150
Width
16
Weight
0,839
