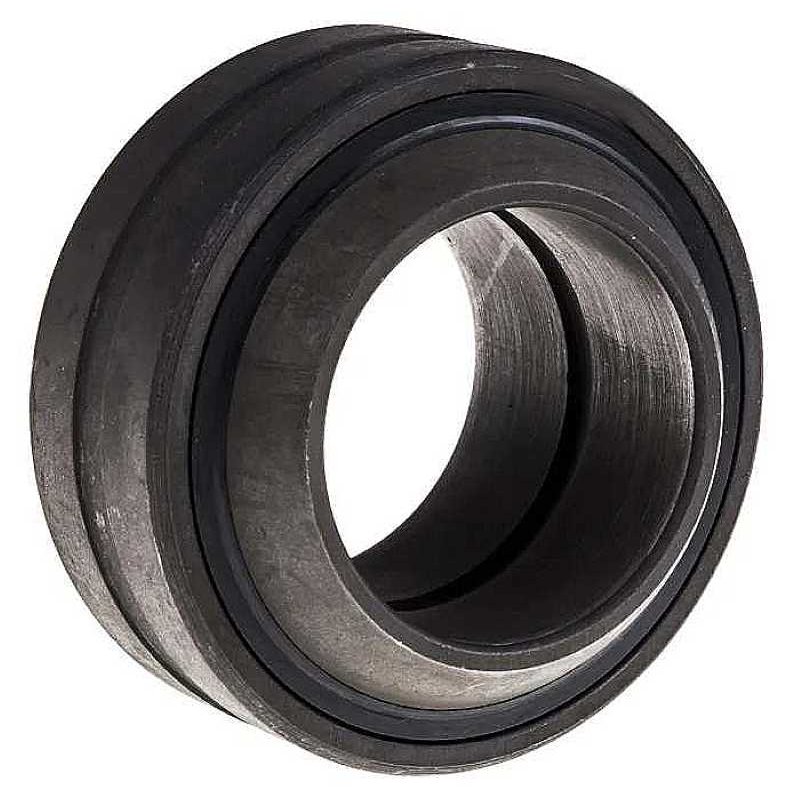

GE 17 FO-2RS RICH Spherical Plain Bearing - 17 x 35 x 20 mm
Technical Specifications:
- Catalog Code: GE 17 FO-2RS RICH
- Brand: RICH
- Type: Spherical plain bearing (Radial)
- Dimensions: 17 x 35 x 20 mm
- Inner Diameter (d): 17 mm
- Outer Diameter (D): 35 mm
- Inner Ring Width (B): 20 mm
- Outer Ring Width (C): 12 mm
- Friction Pair: Steel/Steel
- Sealing: 2RS (Double-sided rubber contact seals)
- Weight: 0.076 kg
- Country of Origin: China
Key Performance Advantages:
- Extended Inner Ring (FO): Designed with a wider inner ring to allow for significantly larger tilting angles, reducing the need for external spacers in the assembly.
- 2RS Contact Seals: Equipped with high-quality rubber seals on both sides to prevent the ingress of contaminants and retain lubrication within the sliding surfaces.
- Steel-on-Steel Friction Pair: Optimized for heavy static loads and applications subject to alternating loads or shock stress.
- Maintenance Features: Includes lubrication grooves and holes to facilitate relubrication, ensuring a long service life even in harsh environments.
Transparency Note: This product is manufactured under the RICH brand. The code GE 17 FO-2RS is used for identification purposes and does not imply affiliation with other manufacturers.
