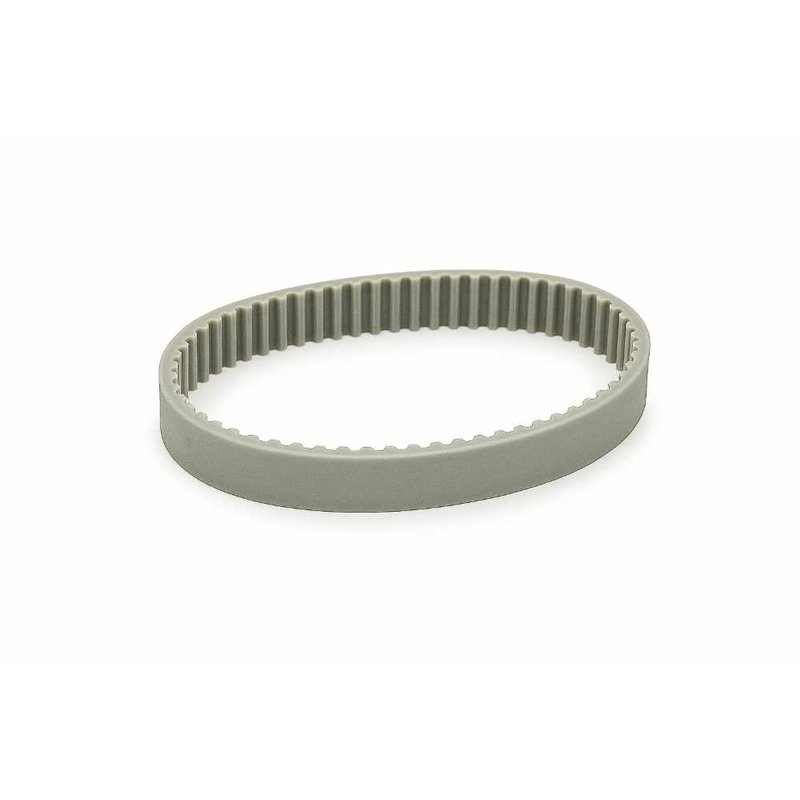

10-T5-750 RICH Polyurethane Timing Belt - T5 Profile - 750 mm Length
Technical Specifications:
- Brand: RICH
- Type: Timing Belt, Polyurethane
- Model: 10-T5-750
- Profile: T5 (Trapezoidal Tooth)
- Pitch Length (Lp): 750 mm
- Pitch (t): 5 mm
- Nominal Width: 10 mm
- Number of Teeth: 150
- Belt Thickness (hs): 2.2 mm
- Tooth Height (ht): 1.2 mm
- Weight: 0.018 kg
- Country of Origin: China
The 10-T5-750 RICH is a highly accurate Polyurethane Timing Belt manufactured by RICH. This belt is engineered for reliable synchronous power transmission and precise linear motion, making it suitable for applications such as small automation systems, indexing equipment, and precise machinery where clean operation is required.
This model features the standard T5 profile, characterized by a 5 mm pitch and a nominal width of 10 mm. The belt has a total pitch length of 750 mm and 150 teeth. Constructed from durable polyurethane, it provides superior resistance to abrasion, wear, and various chemicals, offering a longer service life and reduced maintenance compared to conventional rubber belts. The specific T5 tooth geometry and light weight of the 10-T5-750 RICH ensure consistent, high-precision indexing and high dynamic performance.
Key Performance Advantages:
- Polyurethane Material: Offers superior wear, abrasion, and chemical resistance for a long service life.
- Precise Synchronization: T5 profile ensures highly accurate positioning in linear drive systems.
- Compact Design: 10 mm width is suitable for drives in space-constrained applications.
- High Efficiency: Low mass and precise construction deliver reliable power transmission with minimal inertia.
