1190-14M-22 RICH | Timing Belt

RICH
1190-14M-22
€29.25
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

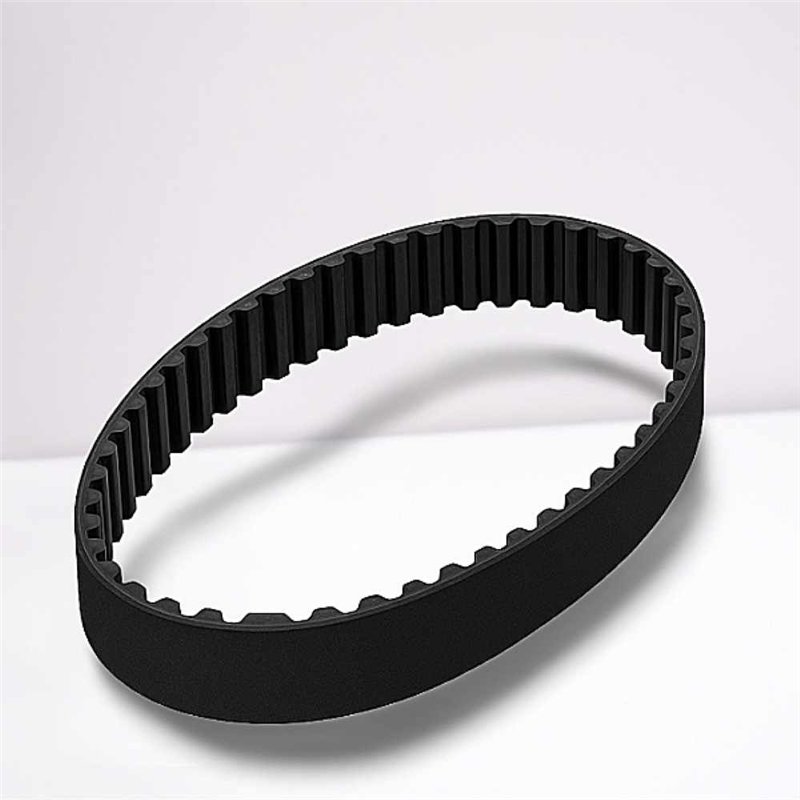

1190-14M-22 RICH Timing Belt - 14M Profile - 1190 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 1190-14M-22
  • Pitch Length (Lp): 1190 mm
  • Profile: 14M
  • Pitch (t): 14 mm
  • Nominal Width: 22 mm
  • Number of Teeth: 85
  • Belt Thickness (hs): 10 mm
  • Tooth Height (ht): 6.1 mm
  • Weight: 0.213 kg
  • Country of Origin: China

The 1190-14M-22 RICH is an extra-heavy-duty Timing Belt manufactured by RICH. This belt is engineered with the robust 14M profile, featuring a large 14 mm pitch, making it suitable for high-power, high-torque industrial synchronous drives. It has a pitch length of 1190 mm.

With 85 teeth and a substantial nominal width of 22 mm, this belt is designed for maximum load carrying capacity and superior power transmission. The 14M profile ensures non-slip operation and precise synchronization, essential for machinery demanding high rotational accuracy and consistency. The durable construction provides excellent resistance to stretching, abrasion, and fatigue, guaranteeing a long and reliable service life in the most severe industrial applications, including heavy machinery, pumps, and large compressors.

Key Performance Advantages:

  • Ultra-High Torque Capacity: Large 14M profile is built for the highest power transmissions.
  • Precise Synchronization: Non-slip toothed design ensures highly accurate positioning.
  • Durable Width (22 mm): Provides maximum strength and load distribution.
  • Long Service Life: Robust construction minimizes elongation and resists wear in demanding environments.
