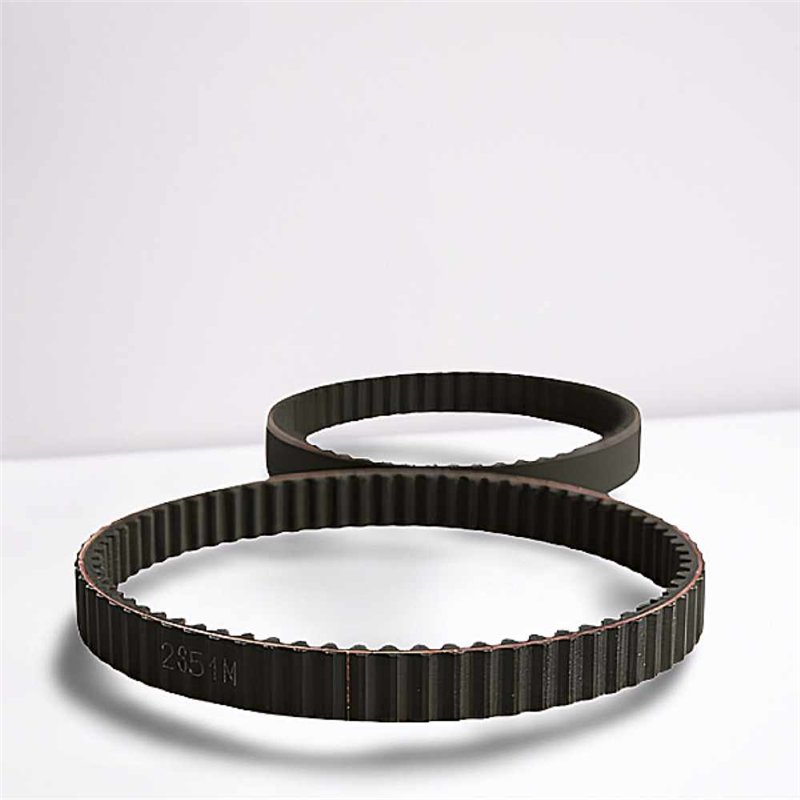

110-XL-19,05 RICH XL Timing Belt - L=279.4 mm, W=19.05 mm
Technical Specifications:
- Brand: RICH
- Type: Timing Belt
- Model: 110-XL-19,05 (110-XL-075)
- Profile: XL
- Pitch (t): 5.08 mm
- Pitch Length (Ld=Lp=Lw): 279.4 mm
- Number of Teeth: 55
- Width (W): 19.05 mm (Inferred from Model)
- Belt Thickness (hs): 2.3 mm
- Tooth Height (ht): 1.27 mm
- Country of Origin: China
The 110-XL-19,05 RICH is a robust XL Timing Belt produced by RICH, designed for reliable and accurate synchronous motion and dependable power transfer. This belt features a pitch length of 279.4 mm with a standard XL pitch of 5.08 mm, giving it a total of 55 teeth. The 19.05 mm width (approximately 3/4 inch nominal width) provides good stability and enhanced load capacity for its profile class.
Constructed from highly durable materials and internally reinforced with high-strength tensile cords, the 110-XL-19,05 RICH ensures minimal stretch and maintains dimensional accuracy throughout its service life. The XL trapezoidal tooth form guarantees positive, non-slip engagement with mating pulleys, making it an excellent choice for general machinery, automated systems, and equipment where reliable timing is crucial.
Key Performance Advantages:
- Synchronous Drive: Provides positive, non-slip power transmission for accurate positioning.
- XL Profile: Standard trapezoidal tooth form for compatibility across many light-duty applications.
- 19.05 mm Width: Offers enhanced stability and power handling for the XL range.
- Dimensional Stability: Reinforced cords ensure consistent length and minimal elongation under load.
