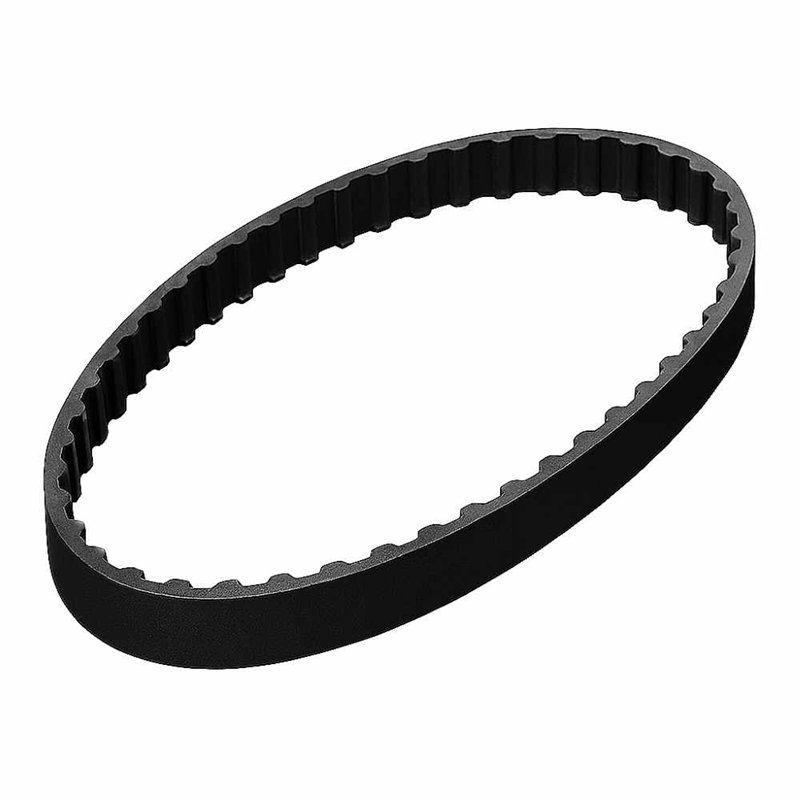

1120-S8M-28 RICH | Timing Belt 1120-S8M-28 RICH
search
  • 1120-S8M-28 RICH | Timing Belt 1120-S8M-28 RICH

1120-S8M-28 RICH | Timing Belt

RICH
1120-S8M-28
€15.82
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

1120-S8M-28 RICH Timing Belt - S8M Profile - 1120 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 1120-S8M-28
  • Pitch Length (Lp): 1120 mm
  • Profile: S8M (Curvilinear Tooth)
  • Pitch (t): 8 mm
  • Nominal Width: 28 mm
  • Number of Teeth: 140
  • Weight: 0.166 kg
  • Country of Origin: China

The 1120-S8M-28 RICH is an ultra-heavy-duty Timing Belt manufactured by RICH, specifically engineered for drives demanding maximum power and synchronization. This belt incorporates the high-capacity S8M profile, utilizing an 8 mm curvilinear pitch that ensures superior torque transfer, high efficiency, and exceptional resistance to tooth shear.

This model is built with a pitch length of 1120 mm and an impressive nominal width of 28 mm. This 28 mm width is among the widest available for this profile, maximizing the belt's load capacity and guaranteeing reliable power distribution in the most demanding applications. With 140 teeth, the belt provides non-slip, accurate positioning, making the 1120-S8M-28 RICH an essential component for heavy industrial machinery, high-performance automation, and powerful mechanical systems.

Key Performance Advantages:

  • Maximum Load Capacity (28 mm): Extreme width handles the highest torque and power demands.
  • Accurate Synchronicity: S8M profile ensures precise, non-slip motion control.
  • Durable Construction: Built for minimal stretch and extended service life under severe loads.
  • Standard Pitch: 8 mm pitch for compatibility with standard S8M pulleys.
