CF6VUUR RICH 6x16x11

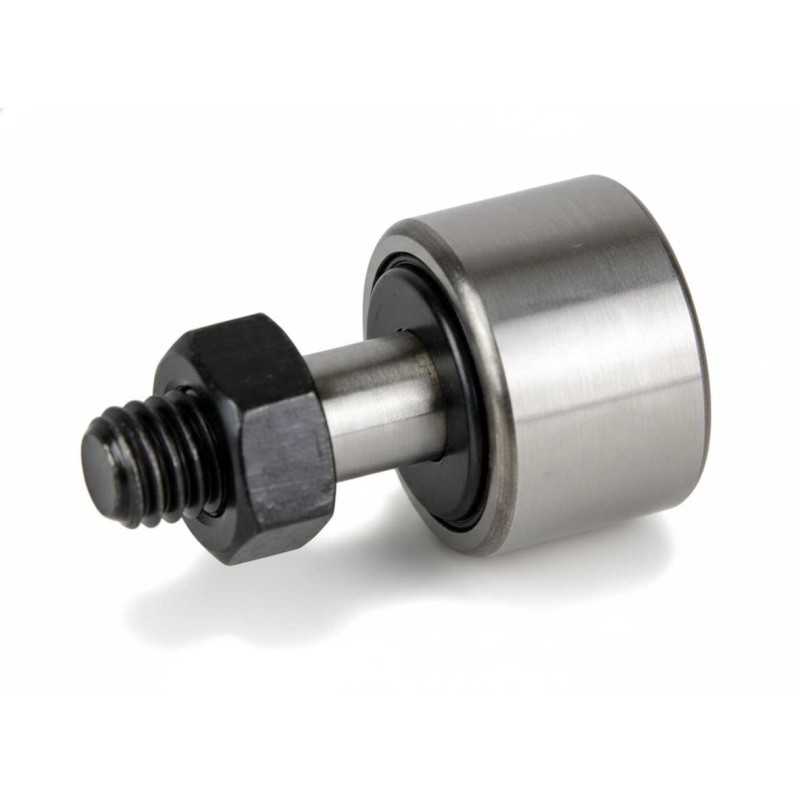

CF6VUUR RICH – Cam Follower, Concentric Stud – 6 x 16 x 11 mm

Technical Specifications:

• Type: Cam follower, concentric stud
• Brand: RICH
• Model Designation: CF6VUUR
• Inner Diameter / Stud Diameter (d): 6 mm
• Outer Diameter (D): 16 mm
• Outer Ring Width (C): 11 mm
• Total Bearing Length (B1): 28 mm
• Thread Size: M6
• Outer Ring Profile: Crowned / Rounded outer ring (R)
• Cage Material: None (Full complement execution, V)
• Sealing: Double-sided rubber contact seal (UUR)
• Weight: 0.022 kg
• Country of Origin: China

Construction Details:

• Components: Thick-walled crowned outer ring, solid concentric stud with integrated mounting thread, full complement needle roller set, and double-sided rubber contact seals.
• Configuration: Full complement cage-less configuration (V) optimized for maximum radial load capacity at low rotational speeds, featuring a rounded outer ring profile to distribute contact pressure.
• Rolling Elements: Needle roller complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
