  • KR35 X PP RICH 16x35x18 KR35PPX RICH

KR35 X PP RICH 16x35x18

Experience robust performance with the KR35.X.PP RICH sealed cam follower.

RICH
KR35PPX
€6.83
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

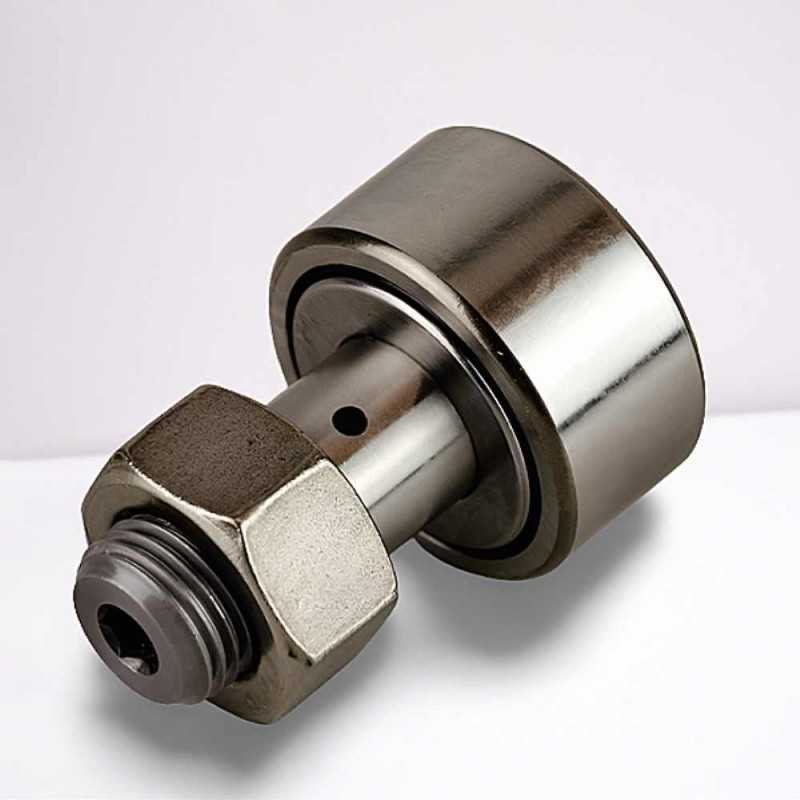

KR35.X.PP RICH Cam Follower, Concentric Stud - 16 x 35 x 18 mm, Sealed

Technical Specifications:

  • Bearing Type: Cam Follower, Concentric Stud
  • Model Designation: KR35.X.PP
  • Brand: RICH
  • Dimensions: 16 x 35 x 18 mm
  • Inner Diameter (d): 16 mm
  • Outer Diameter (D): 35 mm
  • Width (B): 18 mm
  • Bearing Length (B1): 52 mm
  • Rounded Outer Ring: No (Cylindrical)
  • Sealing: Double-sided rubber, contact
  • Thread: M16x1.5
  • Weight: 0.164 kg
  • Country of Manufacture: China

The KR35.X.PP RICH cam follower with a concentric stud, meticulously manufactured by RICH in China, is engineered for precise motion control and reliable performance in various industrial applications. With precise dimensions of 16 mm inner diameter, 35 mm outer diameter, and a width of 18 mm, this cam follower has an overall bearing length of 52 mm and features an M16x1.5 thread for secure mounting. It is designed with a cylindrical outer ring, making it suitable for direct running on flat raceway surfaces. Enhanced by double-sided rubber contact seals, this cam follower ensures effective contamination protection and lubricant retention, extending its service life. Weighing 0.164 kg, the KR35.X.PP RICH cam follower provides consistent and long-lasting operation in critical machinery.

Key Performance Advantages:

  • Concentric Stud Design: Ensures high precision and ease of installation.
  • Cylindrical Outer Ring: Optimized for direct running on flat raceway surfaces.
  • Effective Sealing: Double-sided rubber contact seals protect against contamination and retain lubricant.
  • High Radial Load Capacity: Engineered for demanding cam and linear guide applications.
  • Precision Thread (M16x1.5): Ensures secure and stable mounting.
  • RICH Quality: Manufactured in China to high standards, ensuring optimal performance.

Data sheet

Inner Diameter
16
Outer Diameter
35
Width
18
Weight
0,164
Sealing
Lip Seal On Both Sides
