CF10UUR-A RICH 10x22x12

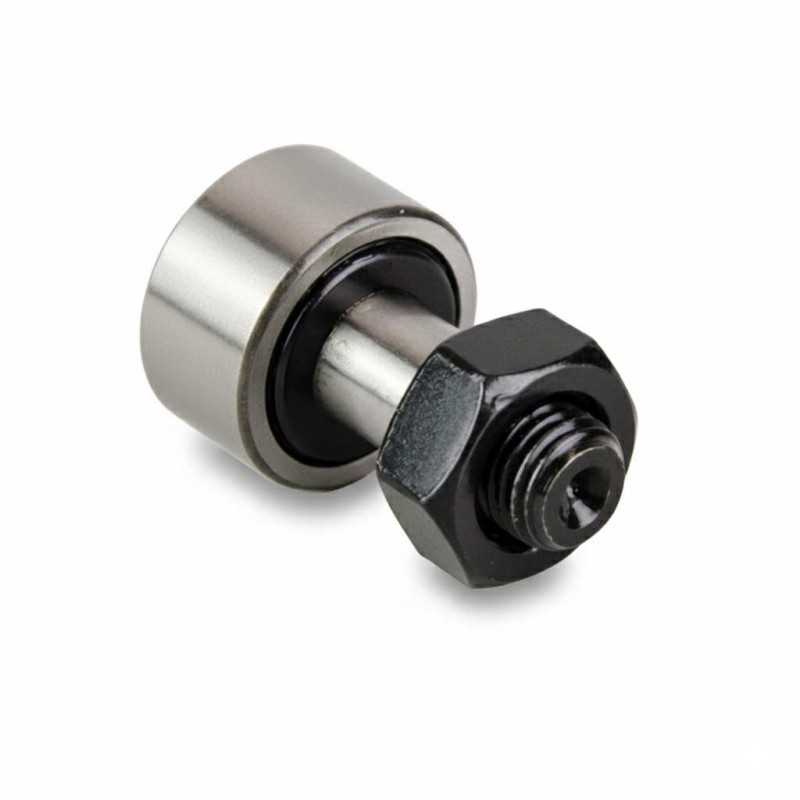

CF10UUR-A RICH – Cam Follower, Concentric Stud – 10 x 22 x 12 mm

Technical Specifications:

• Type: Cam follower, concentric stud
• Brand: RICH
• Model Designation: CF10UUR-A
• Inner Diameter / Stud Diameter (d): 10 mm
• Outer Diameter (D): 22 mm
• Outer Ring Width (C): 12 mm
• Total Bearing Length (B1): 36 mm
• Thread Size: M10x1.25
• Outer Ring Profile: Crowned / Rounded outer ring (R)
• Cage Material: Steel
• Sealing: Double-sided rubber contact seal (UUR)
• Weight: 0.059 kg
• Country of Origin: China

Construction Details:

• Components: Thick-walled crowned outer ring, solid concentric stud with integrated mounting thread, steel cage assembly, precision rolling elements, and double-sided rubber contact seals.
• Configuration: Stud-type track roller with caged design for optimal speed performance, featuring a rounded outer ring profile to reduce edge stresses under misaligned operation.
• Rolling Elements: Needle roller complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
