CFE-1 1/4-SB RICH 17,44x31,75x19,05

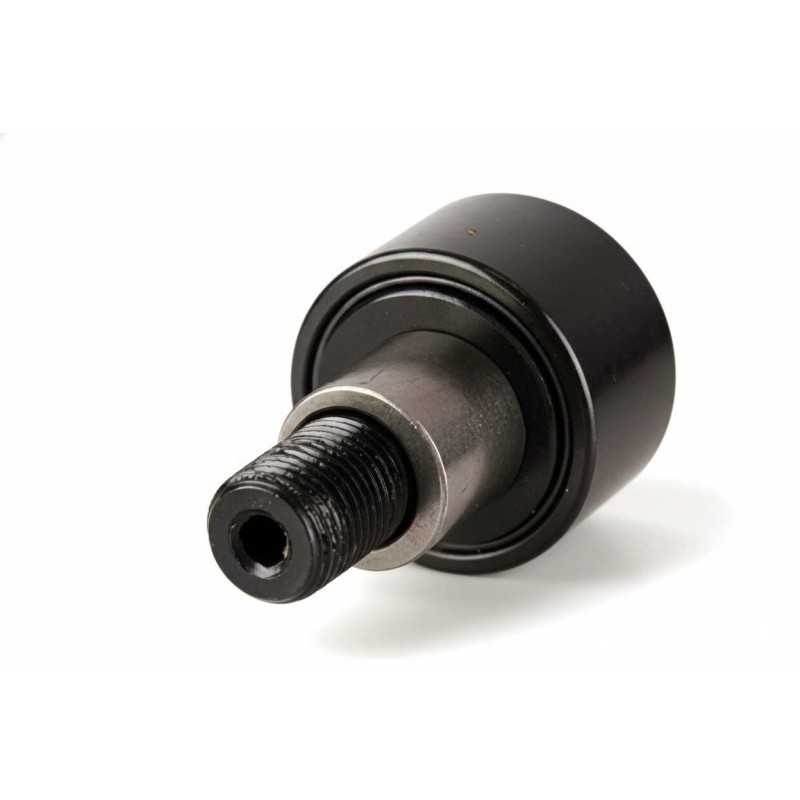

CFE-1 1/4-SB RICH – Cam Follower, Eccentric Stud – 17.44 x 31.75 x 19.05 mm

Technical Specifications:

• Type: Cam follower, eccentric stud
• Brand: RICH
• Model Designation: CFE-1 1/4-SB
• Inner Diameter / Stud Diameter (d): 17.44 mm
• Outer Diameter (D): 31.75 mm
• Outer Ring Width (C): 19.05 mm
• Total Bearing Length (B1): 44.45 mm
• Thread Size: 1/2-20 UNF
• Outer Ring Profile: Cylindrical / Flat outer ring
• Cage Material: None (Full complement execution)
• Sealing: Double-sided rubber contact seal
• Weight: 0.149 kg
• Country of Origin: China

Construction Details:

• Components: Thick-walled cylindrical outer ring, solid eccentric stud with integrated mounting thread, full complement needle roller set, and double-sided rubber contact seals.
• Configuration: Eccentric stud-type track roller (CFE) designed with an adjustable offset layout for precise alignment positioning, featuring a cylindrical outer profile and a cage-less execution for maximum radial loading capacity.
• Rolling Elements: Needle roller complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
