SL04-5010PP2NR RICH 50x80x40
Rating:
(0)
EUR €
- EUR €
- USD $

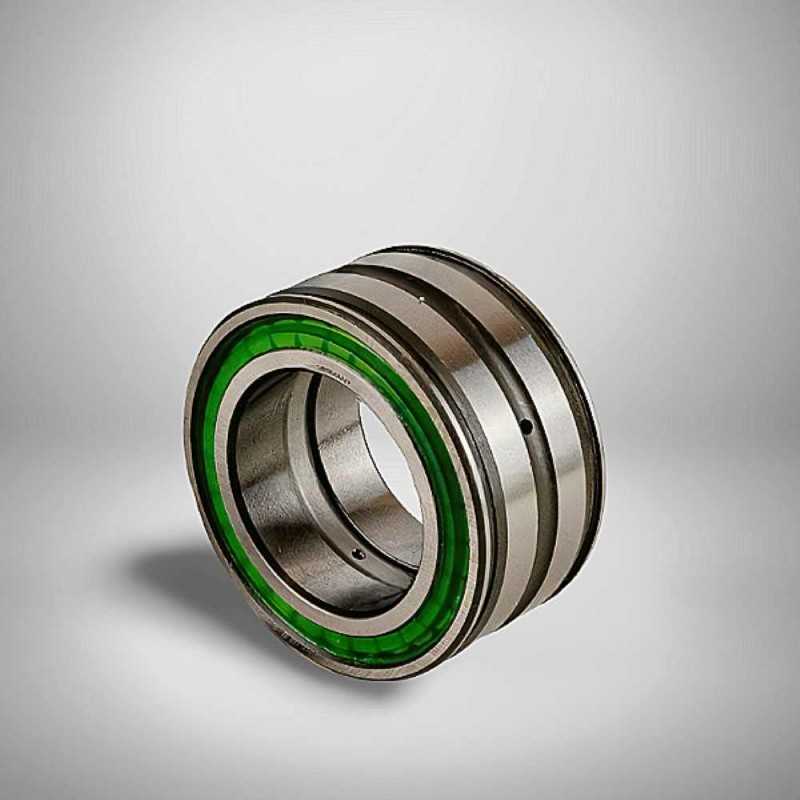

SL04-5010PP2NR RICH Double Row Cylindrical Roller Bearing - 50 x 80 x 40 mm
Technical Specifications:
- Bearing Type: Double Row Cylindrical Roller Bearing
- Model Designation: SL04-5010PP2NR
- Brand: RICH
- Dimensions: 50 x 80 x 40 mm
- Inner Diameter (d): 50 mm
- Outer Diameter (D): 80 mm
- Width (B): 40 mm
- Cage: None (Full complement)
- Outer Ring Features: Two grooves with retaining rings
- Sealing: Double-sided rubber, contact
- Weight: 0.748 kg
- Country of Manufacture: China
The SL04-5010PP2NR RICH double row cylindrical roller bearing, proudly manufactured by RICH in China, is engineered for demanding applications requiring extremely high radial load capacity. With precise dimensions of 50 mm inner diameter, 80 mm outer diameter, and a width of 40 mm, this bearing provides exceptional stability. It features a full complement of rollers (no cage), ensuring maximum load support. The outer ring is equipped with two grooves and retaining rings for secure axial location. Double-sided rubber contact seals provide effective protection against contaminants and retain lubricant, enhancing durability and extending service life. Weighing 0.748 kg, this high-quality component is built to deliver consistent and long-lasting rotational performance in heavy-duty environments.
Key Performance Advantages:
- Very High Radial Load Capacity: Full complement design for maximum load support.
- Double-sided Contact Seals: Excellent protection against contaminants and lubricant retention.
- Outer Ring Grooves with Retaining Rings: Ensures secure axial positioning.
- Robust Double-Row Design: Provides enhanced stability and rigidity.
- Precision Engineering: Ensures accurate fit and smooth, efficient performance.
- RICH Quality: Manufactured in China to high standards, ensuring optimal performance.
Data sheet
Inner Diameter
50
Outer Diameter
80
Width
40
Category
Double Row Cylindrical Roller Bearing
