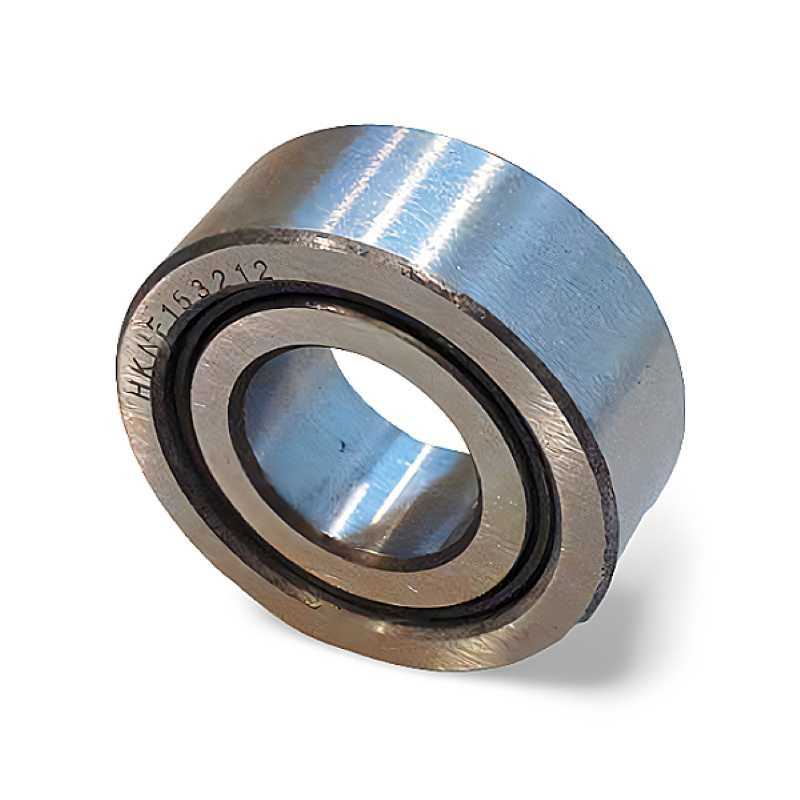

HK NF 153212 RICH 15x32x12

HK NF 153212 RICH – Single Row Cylindrical Roller Bearing – 15 x 32 x 12 mm

Technical Specifications:

• Type: Single row cylindrical roller bearing
• Brand: RICH
• Model Designation: HK NF 153212
• Inner Diameter (d): 15 mm
• Outer Diameter (D): 32 mm
• Total Width (T): 12 mm
• Inner Ring Width: 11.7 mm
• Cage Material: Steel
• Sealing: Open
• Weight: 0.048 kg
• Country of Origin: China

Product Details:

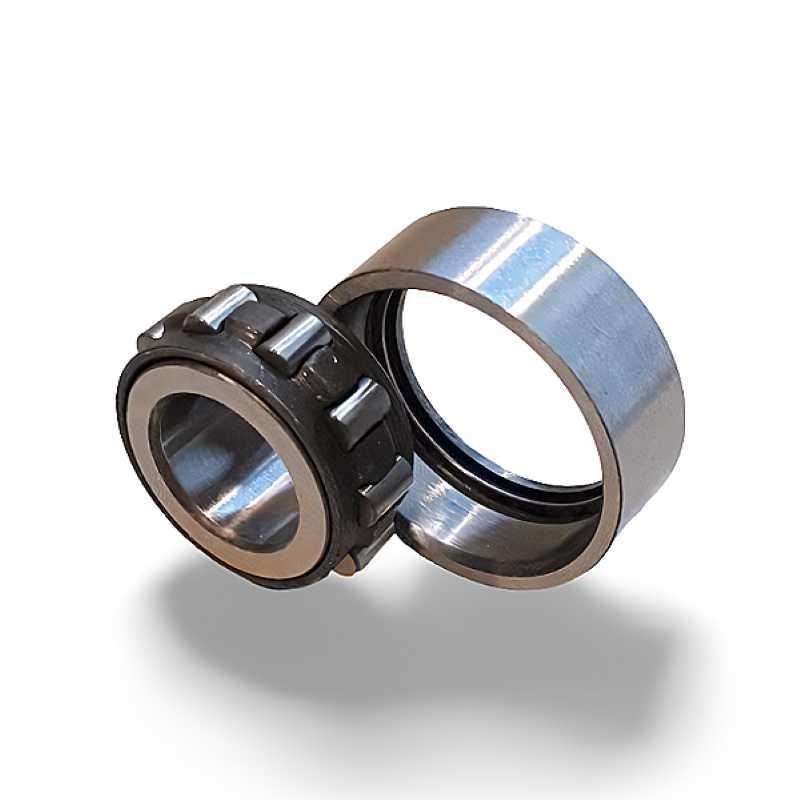

• Components: Consists of a heavy-duty inner ring with two integral flanges, an outer ring with a single integral flange, a single row of high-precision cylindrical rollers, and a pressed steel cage.
• Internal Geometry: Engineered with an NF-style configuration, allowing the outer ring to be displaced axially in one direction while locating the shaft in the opposite direction, providing rigid radial support under heavy-duty operations.
• Dimensional Set: Standardized metric configuration providing a 15 mm inner bore diameter, a 32 mm outside diameter, a 12 mm total assembled width, and an 11.7 mm inner ring section height.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
