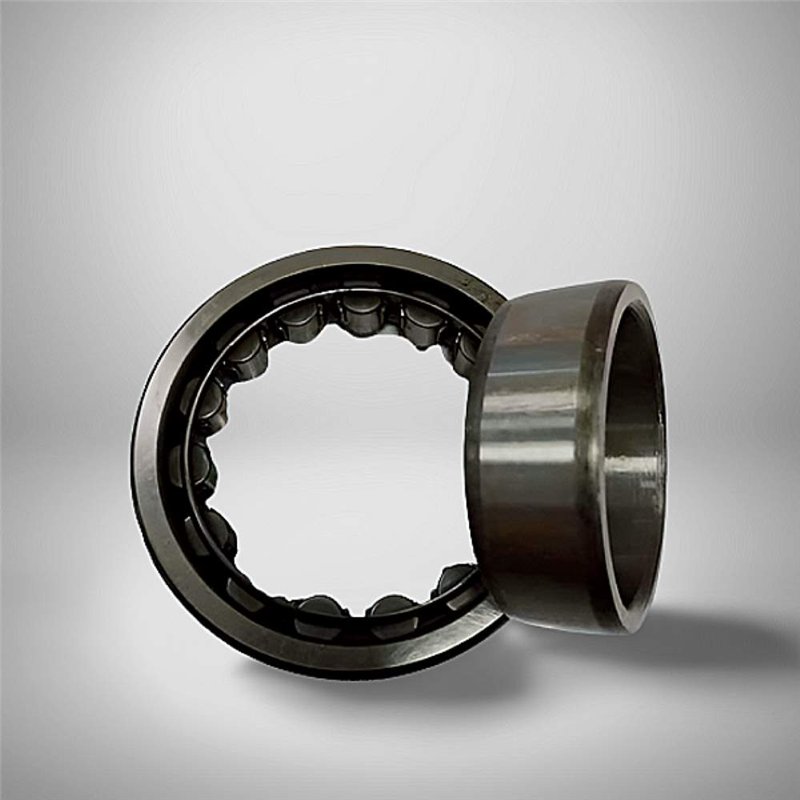

NU 2209 E C3 RICH 45x85x23
NU 2209 E C3 RICH Cylindrical Roller Bearing – dimensions 45 x 85 x 23 mm, weight 0.6 kg. Reinforced execution, C3 clearance for high-speed and thermal load conditions, steel cage for stability.
NU 2209 E C3 RICH | Single Row Cylindrical Roller Bearing – 45 x 85 x 23 mm
Technical Specifications:
- Catalog Code: NU 2209 E C3 RICH
- Brand: RICH
- Bearing Type: Single Row Cylindrical Roller Bearing
- Inner Diameter (d): 45 mm
- Outer Diameter (D): 85 mm
- Total Width (B): 23 mm
- Weight: 0.6 kg
- Cage: Steel
- Clearance: C3 – Greater than normal
- Reinforced Execution: Yes
- Country of Origin: China
Key Performance Advantages:
- High Load Capacity: Cylindrical rollers ensure excellent support under heavy radial forces.
- C3 Clearance: Greater internal clearance allows reliable operation under thermal expansion and high speeds.
- Reinforced Execution: Built for durability and extended service life in demanding applications.
- Steel Cage: Provides robust guidance of rolling elements, ensuring stability and precision.
- Optimized Dimensions: 45 mm bore, 85 mm outer diameter, 23 mm width for versatile use.
- RICH Quality: Precision manufactured for consistent performance and reliability.
Transparency Note: This single row cylindrical roller bearing is manufactured directly under the RICH brand. The catalog code NU 2209 E C3 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand.
Data sheet
Inner Diameter
45
Outer Diameter
85
Width
23
Weight
0,6
Roller Rows
Single Row
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
