6201 RICH 12x32x10 6201 RICH
search
  • 6201 RICH 12x32x10 6201 RICH

6201 RICH 12x32x10

RICH
6201

Volume discounts

Quantity Unit price
10 €0.29
20 €0.27
50 €0.26
100 €0.24
€0.32
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

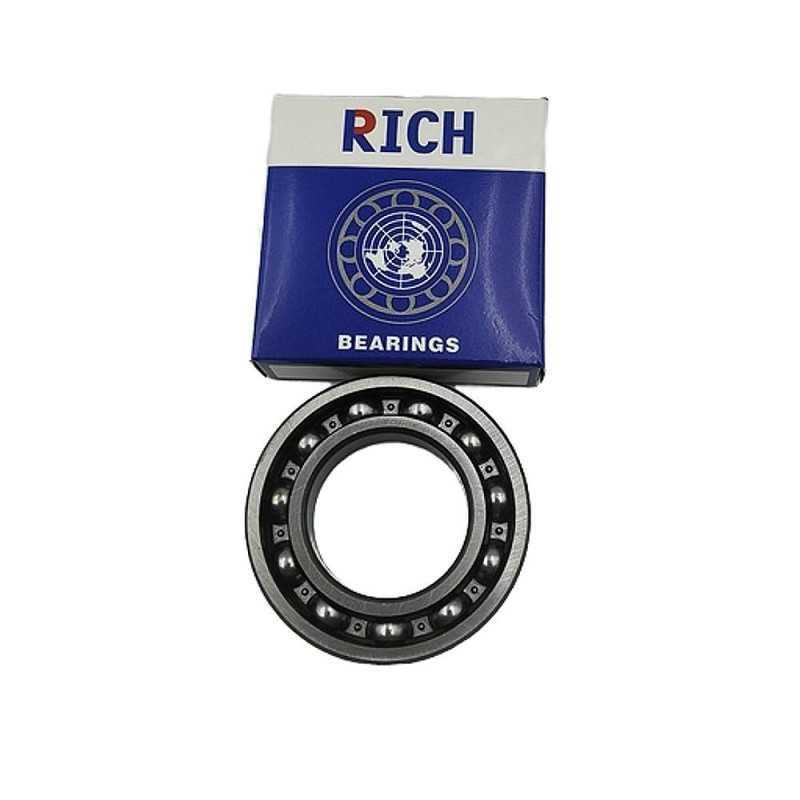

6201 RICH | Single Row Deep Groove Ball Bearing – 12 × 32 × 10

Technical Specifications:

  • Brand: RICH
  • Type: Single Row Deep Groove Ball Bearing
  • Inner Diameter (d): 12 mm
  • Outer Diameter (D): 32 mm
  • Width (B): 10 mm
  • Cage: Steel
  • Clearance: CN (Normal Clearance)
  • Sealing: Open Type (No Seals)
  • Weight: 0.035 kg
  • Country of Origin: China

Performance Characteristics:

  • Deep Groove Raceway: The geometry supports low-friction rotation and uniform radial load distribution.
  • Axial Load Support: The single row configuration allows moderate axial load handling in both directions.
  • Steel Cage: The pressed steel cage maintains ball spacing and dimensional stability at standard operating speeds.
  • Open Configuration: The absence of sealing elements allows external lubrication and direct inspection of the rolling elements.
  • CN Clearance: Normal internal clearance suitable for general-purpose applications with standard thermal expansion conditions.

The 6201 RICH bearing is a single row deep groove ball bearing with dimensions 12 × 32 × 10 mm. The open design allows external lubrication, while the CN clearance and steel cage support stable operation in general-purpose mechanical assemblies.

Transparency Note: This bearing is manufactured under the RICH brand. All technical data refer exclusively to the RICH 6201 model and do not imply association with other manufacturers.

Data sheet

Inner Diameter
12
Outer Diameter
32
Width
10
Weight
0,03
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
