6003-2RS-NR RICH 17x35x10
Rating:
(0)
EUR €
- EUR €
- USD $

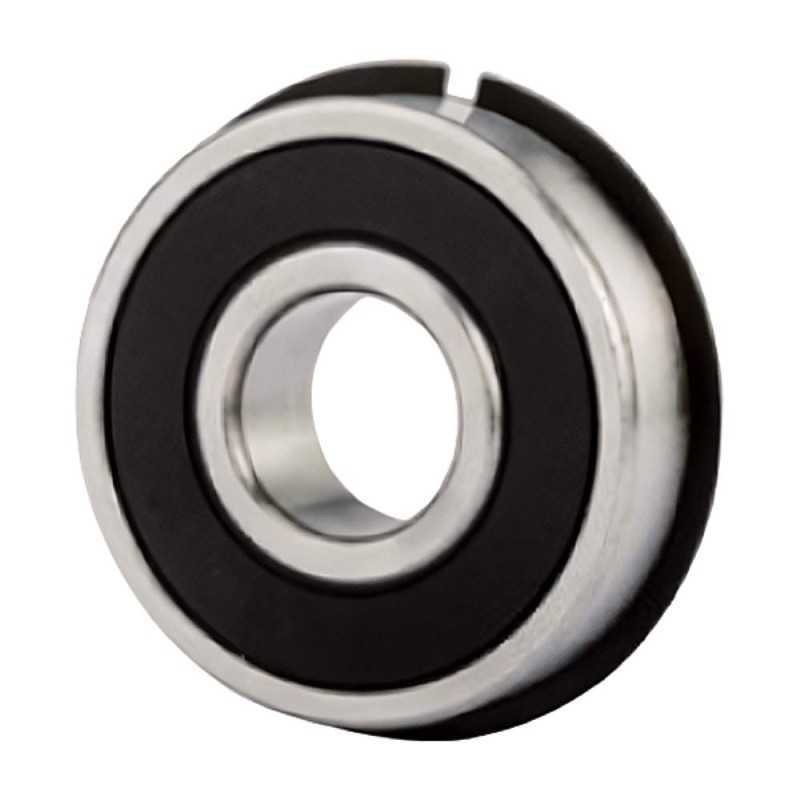

6003.2RS.NR RICH Single Row Deep Groove Ball Bearing - 17 x 35 x 10 mm
Technical Specifications:
- Brand: RICH
- Type: Single Row Deep Groove Ball Bearing
- Dimensions: 17 x 35 x 10 mm
- Clearance: CN (Normal)
- Sealing: 2RS (Double-sided contact rubber seals)
- Groove: Outer ring with snap ring groove (NR)
- Weight: 0.043 kg
- Country of Origin: China
The 6003.2RS.NR RICH is a highly versatile single row deep groove ball bearing engineered for a variety of applications. This bearing is designed to handle both radial and light axial loads. Its 2RS sealing provides a double-sided contact rubber seal, which offers excellent protection against dust, dirt, and moisture, while also retaining the internal lubricant. This sealed design makes the bearing virtually maintenance-free. The outer ring features a snap ring groove (NR), which is crucial for secure axial positioning within a housing, simplifying installation and preventing unwanted movement. With a normal clearance (CN), this bearing is suitable for a wide range of operating conditions. The combination of its sealed design and snap ring feature makes this RICH bearing a reliable and cost-effective solution for many applications.
Key Performance Advantages:
- Maintenance-Free: The double-sided rubber seals (
2RS) protect the bearing and retain lubricant, eliminating the need for regular maintenance. - Secure Axial Positioning: The snap ring groove (
NR) allows for quick and secure axial location in a housing without the need for additional components or machining. - Versatile Use: Capable of handling both radial and light axial loads in various applications.
- RICH Quality: A high-quality component for reliable mechanical function.
Data sheet
Inner Diameter
17
Outer Diameter
35
Width
10
Weight
0,04
Ball Rows
Single Row
