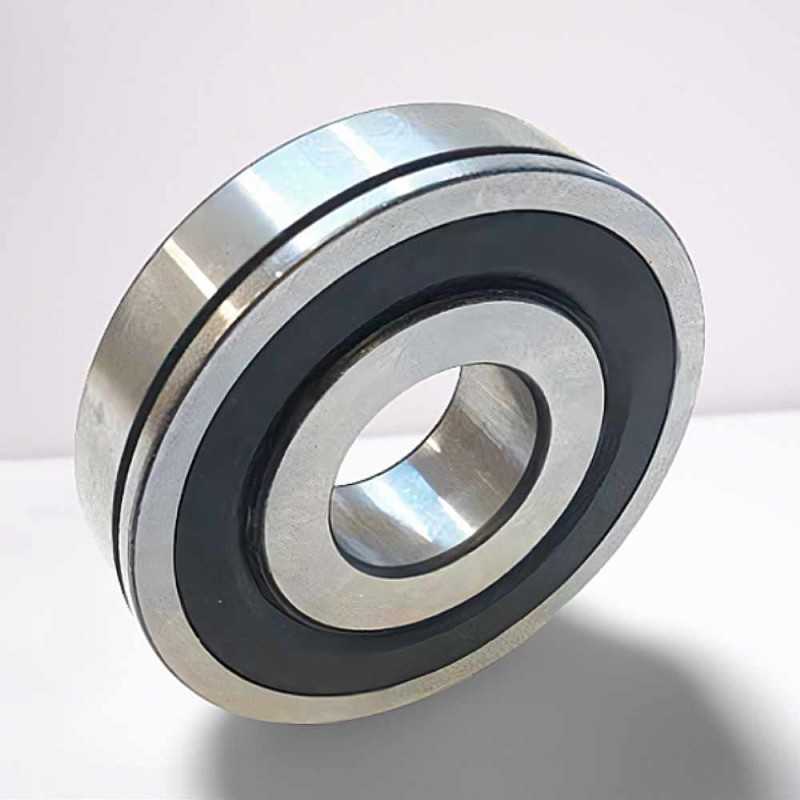

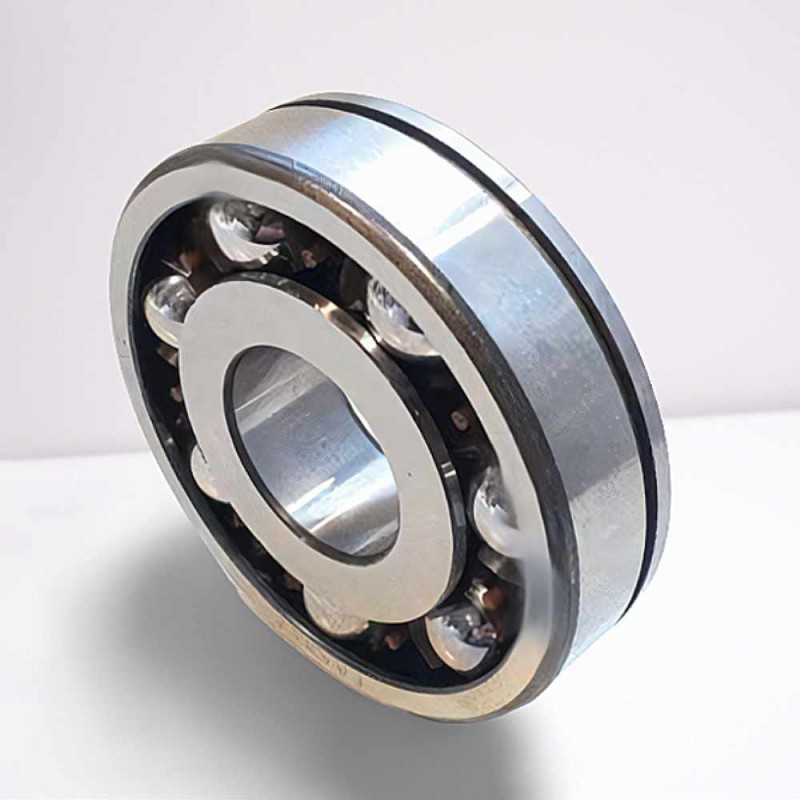

AB12203 S04 RICH | Single Row Deep Groove Ball Bearing – 28 x 75 x 19 mm
OE Reference:
- FIAT – 7747272
Technical Specifications:
- Catalog Code: AB12203S04 RICH
- Bearing Type: Deep Groove Ball Bearing
- Configuration: Single Row
- Dimensions: 28 x 75 x 19 mm
- Inner Diameter (d): 28 mm
- Outer Diameter (D): 75 mm
- Width (B): 19 mm
- Weight: 0.370 kg
- Cage Material: Polyamide
- Sealing: One-sided plastic, contact type
- Outer Ring Feature: Groove present
- Brand: RICH
Product Overview:
AB12203S04 RICH is a robust single row deep groove ball bearing designed for secure fitment and smooth rotation in automotive and industrial applications. The presence of a groove on the outer ring allows for snap ring mounting or axial positioning, while the one-sided plastic contact seal ensures protection against dust and moisture from one side.
Its polyamide cage supports quiet operation and high-speed performance, while the compact dimensions of 28 x 75 x 19 mm make it suitable for constrained assemblies. With a weight of 0.370 kg, this bearing offers a solid balance between strength and efficiency.
Key Performance Advantages:
- One-Sided Contact Seal: Protects against contaminants while reducing friction.
- Outer Ring Groove: Enables secure axial retention or snap ring use.
- Polyamide Cage: Lightweight and optimized for quiet, high-speed operation.
- OE Compatibility: Matches FIAT reference 7747272.
- RICH Quality: Precision-built for durability and consistent performance.
Transparency Note: The code AB12203S04 RICH is used for catalog identification and compatibility reference only. The product is clearly marked with its actual brand and specifications.
Data sheet
Inner Diameter
28
Outer Diameter
75
Width
19
Weight
0,37
Ball Rows
Single Row
Sealing
Contact Seal On One Side
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
