50BC08 C3 RICH 50x80x16

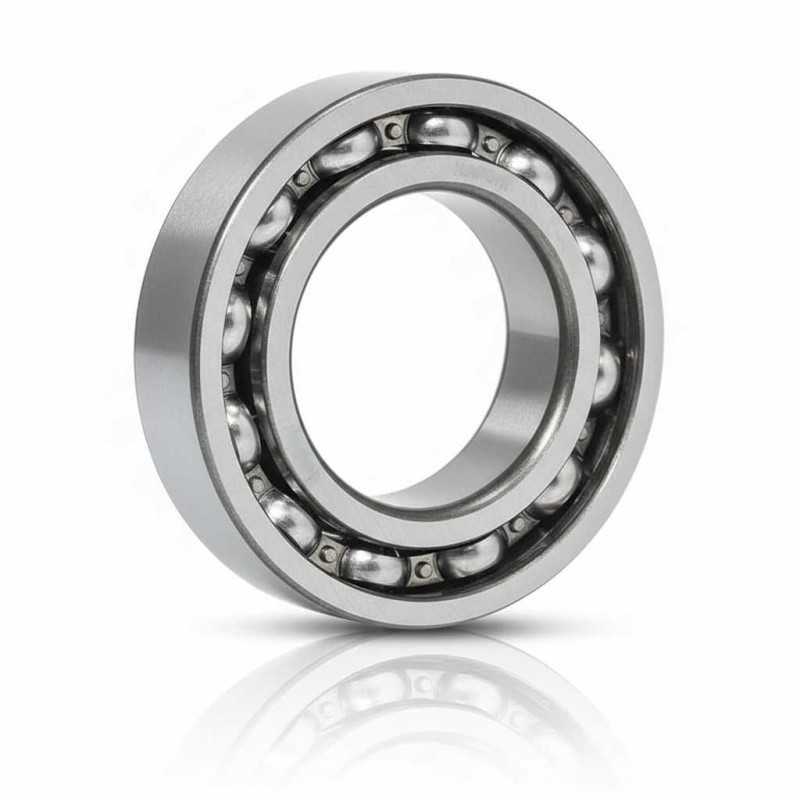

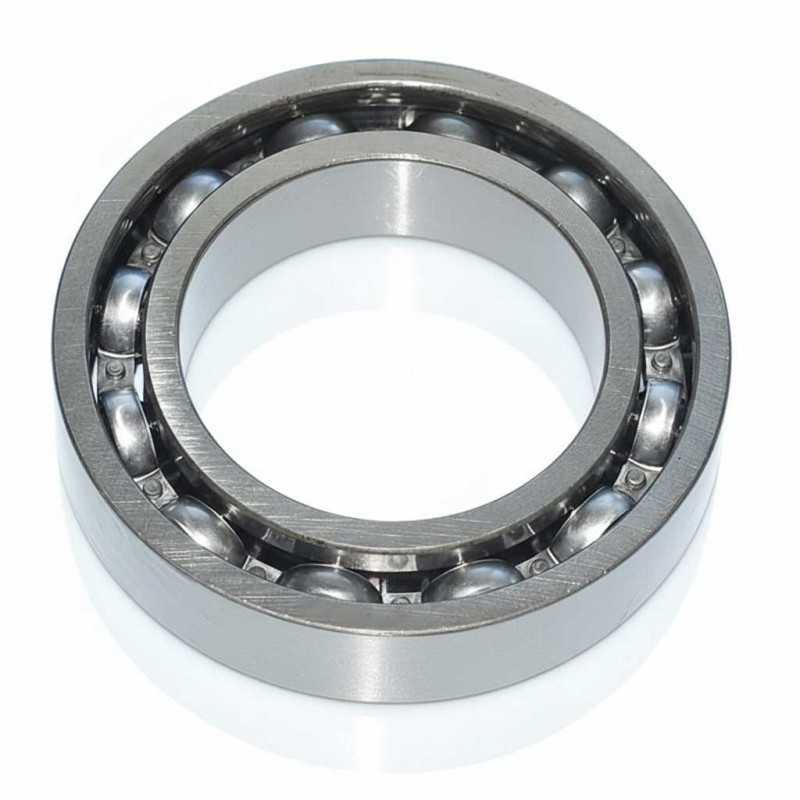

50BC08 C3 RICH Single Row Deep Groove Ball Bearing – 50 × 80 × 16 mm

OE Reference: 90363-50005 (TOYOTA)

The 50BC08 C3 RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 50 × 80 × 16 mm format, incorporating a C3 radial internal clearance classification for optimized performance under varying thermal conditions.

Technical Specifications:

• Brand: RICH
• Type: Single row deep groove ball bearing
• Model: 50BC08 C3 RICH
• Inner Diameter (d): 50 mm
• Outer Diameter (D): 80 mm
• Width (B): 16 mm
• Internal Clearance: C3
• Sealing: Open (None)
• Weight: 0.39 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Radial and axial load arrangement
• Thermal Classification: C3 clearance for temperature-related dimensional variation
• Structural Layout: Deep groove geometry for stable high-speed operation
• Material Type: High‑carbon chrome bearing steel
• Application Interface: Toyota transmission and drivetrain assembly interfaces

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
