SX02A10 RICH 15x35x13 2TS23ASX02A10CS29 RICH
zoom_out_map
SX02A10 RICH 15x35x13 2TS23ASX02A10CS29 RICH

SX02A10 RICH 15x35x13

Type: Single Row Deep Groove Ball Bearing
Model: RICH SX02A10
Dimensions: 15 x 35 x 13 mm
Brand: RICH
Origin: China
RICH
2TS23ASX02A10CS29
€23.89
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

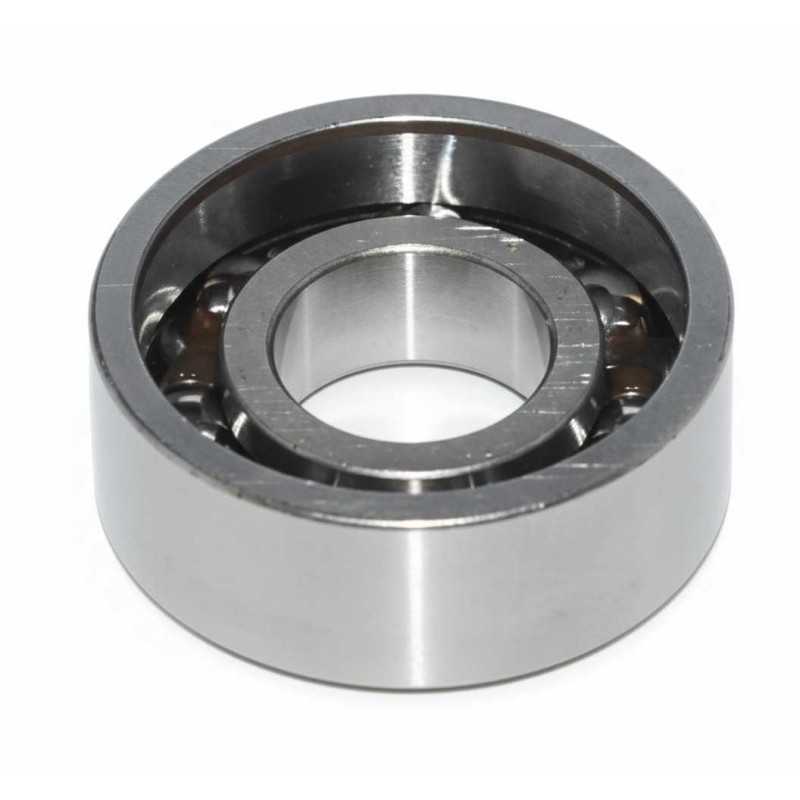

SX02A10 RICH Single Row Deep Groove Ball Bearing – 15 × 35 × 13 mm

OE References / Interchange:

  • STIHL: 360-9523, 003 4266, 95230034266, 95230034270
  • NTN: 2TS2-3A-SX 02A10 CS29

Technical Specifications:

  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Model: SX02A10 RICH
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 35 mm
  • Total Width (B): 13 mm
  • Inner Ring Width: 10 mm
  • Cage Material: Polyamide
  • Sealing: None
  • Weight: 0.05 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row deep groove ball bearing optimized for power tool and small engine applications.
  • Material Type: High-carbon chromium steel rings and rolling elements with a low-friction polyamide cage.
  • Configuration: Open design with a specific inner ring offset (10 mm vs 13 mm total width).
  • Dimensional Format: 15 × 35 × 13 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
15
Outer Diameter
35
Width
13
Weight
0,05
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
