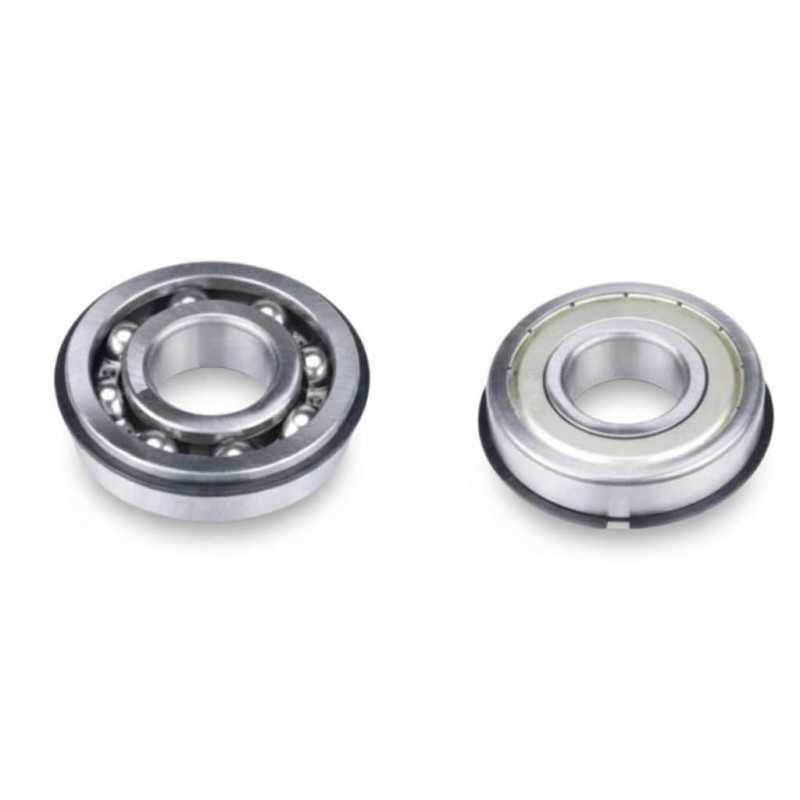

6303 Z NR RICH 17x47x14 6303ZNR RICH
zoom_out_map
6303 Z NR RICH 17x47x14 6303ZNR RICH

6303 Z NR RICH 17x47x14

Type: Single Row Deep Groove Ball Bearing
Model: 6303 Z NR RICH
Dimensions: 17 x 47 x 14 mm
Features: Snap Ring (NR), Single Metal Shield (Z), Steel Cage
Brand: RICH
Origin: China
RICH
6303ZNR
€1.62
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

6303 Z NR RICH – Single Row Deep Groove Ball Bearing – 17 x 47 x 14 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 6303 Z NR
  • Inner Diameter (d): 17 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 14 mm
  • Sealing: Z (One-sided non-contact metal shield)
  • Mounting Feature: NR (Snap ring groove with snap ring on the outer ring)
  • Internal Clearance: CN (Normal clearance)
  • Cage Material: Steel
  • Weight: 0.114 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Classic deep groove geometry designed for high-speed reliability and balanced radial/axial load distribution.
  • Sealing System: Features a single non-contact metal shield (Z) to protect internal components from large debris while maintaining minimal rotational friction.
  • Mounting Interface: Equipped with a snap ring and groove (NR) on the outer ring, facilitating precise axial location and secure housing retention.
  • Mechanical Interface: 17 x 47 x 14 mm dimensional format manufactured according to industrial precision tolerances for smooth, quiet operation.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
17
Outer Diameter
47
Width
14
Ball Rows
Single Row
Sealing
Cover On One Side
Cage
Steel
Category
Single Row Deep Groove Ball Bearing
