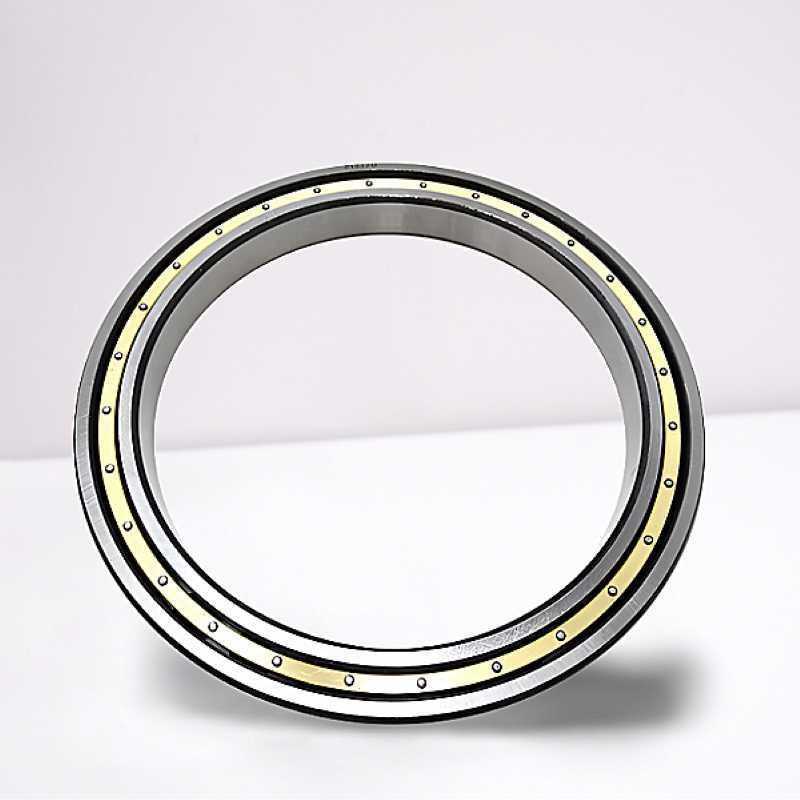

61952 M RICH 260x360x46 61952-M RICH
zoom_out_map
61952 M RICH 260x360x46 61952-M RICH

61952 M RICH 260x360x46

Type: Single Row Deep Groove Ball Bearing (Brass Cage)
Model: 61952.M RICH
Dimensions: 260 x 360 x 46 mm
Brand: RICH
Origin: China
RICH
61952-M
€204.12
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

61952.M RICH Single Row Deep Groove Ball Bearing – 260 x 360 x 46 mm

Technical Specifications:

  • Brand: RICH
  • Type: Single Row Deep Groove Ball Bearing
  • Model: 61952.M RICH
  • Inner Diameter (d): 260 mm
  • Outer Diameter (D): 360 mm
  • Width (B): 46 mm
  • Cage: Brass, roller-guided
  • Clearance: CN (Normal Clearance)
  • Sealing: Open Type (No Seals)
  • Weight: 12.986 kg
  • Country of Origin: China

Performance Characteristics:

  • Deep Groove Raceway: Supports high radial loads and bidirectional axial loads.
  • Machined Brass Cage (M): Provides high strength and stability in demanding operating conditions.
  • Thin Section Design: Low cross-sectional height suitable for large diameter shafts with limited space.
  • CN Clearance: Standard radial internal clearance for conventional temperature ranges.
  • Open Configuration: Designed for oil or grease lubrication in circulating systems.

The 61952.M RICH is a large-diameter single row deep groove ball bearing equipped with a machined brass cage. The architecture features a deep groove raceway for radial and axial load support. The open design allows for direct lubrication and maintenance in heavy-duty mechanical assemblies.

Additional Technical Data:

  • Designation: 61952.M
  • Cage Type: M (Machined Brass)
  • Bore Type: Cylindrical
  • Material: Bearing steel

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
260
Outer Diameter
360
Width
46
Ball Rows
Single Row
Cage
Brass
Category
Single Row Deep Groove Ball Bearing
