  • LME25UUOP RICH 25x40x58 LME25UUOP RICH

LME25UUOP RICH 25x40x58

The LME25UUOP RICH is a double-sealed, open-type linear ball bearing (25 x 40 x 58 mm) for use on supported shafts in linear motion systems.

RICH
LME25UUOP
€6.70
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

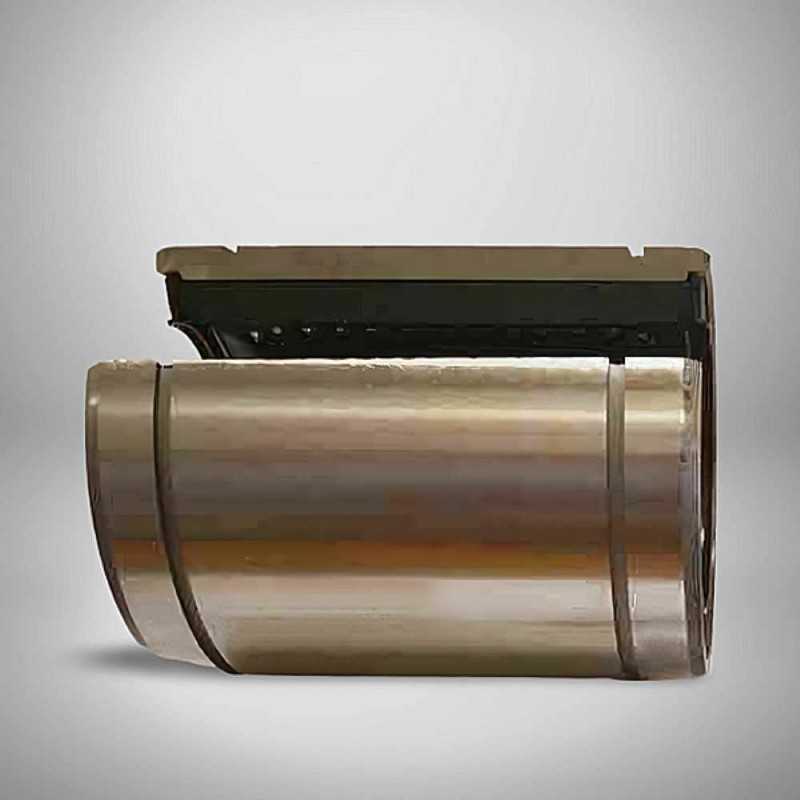

LME25UUOP RICH Linear Ball Bearing - 25 x 40 x 58 mm

Technical Specifications:

  • Brand: RICH
  • Type: Open-Type Linear Ball Bearing
  • Dimensions: 25 x 40 x 58 mm
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 40 mm
  • Total Length (L): 58 mm
  • Ball Circuits: 5
  • Cage: Plastic
  • Material: Steel
  • Seals: Double-sealed on both sides (UU)
  • Weight: 0.17 kg
  • Country of Origin: China

The LME25UUOP RICH is a specialized linear ball bearing designed for applications where the shaft is supported. The OP in its designation indicates an "open" type, which features a longitudinal slot along its outer cylinder. This key design element allows the bearing to be mounted on a supported shaft or guide rail, preventing shaft deflection and significantly increasing the system's rigidity. The bearing provides smooth, precise, and low-friction linear motion, thanks to its five ball circuits and durable plastic cage. Additionally, the UU designation means it is double-sealed on both ends, protecting the internal components from dust and contaminants, ensuring a long and reliable service life.

Key Performance Advantages:

  • Open Design: Allows for use with supported shafts, increasing load capacity and rigidity.
  • High Precision Linear Motion: Delivers accurate and smooth movement.
  • Double-Sealed (UU): Protects against dirt and debris, enhancing durability.
  • Low Friction: Minimizes energy consumption and heat generation.
  • RICH Quality: A reliable and versatile solution for supported linear motion systems.

Data sheet

Inner Diameter
25
Outer Diameter
40
Width
58
Weight
0,17
