NKI22/16 RICH 22x34x16
Rating:
(0)
EUR €
- EUR €
- USD $

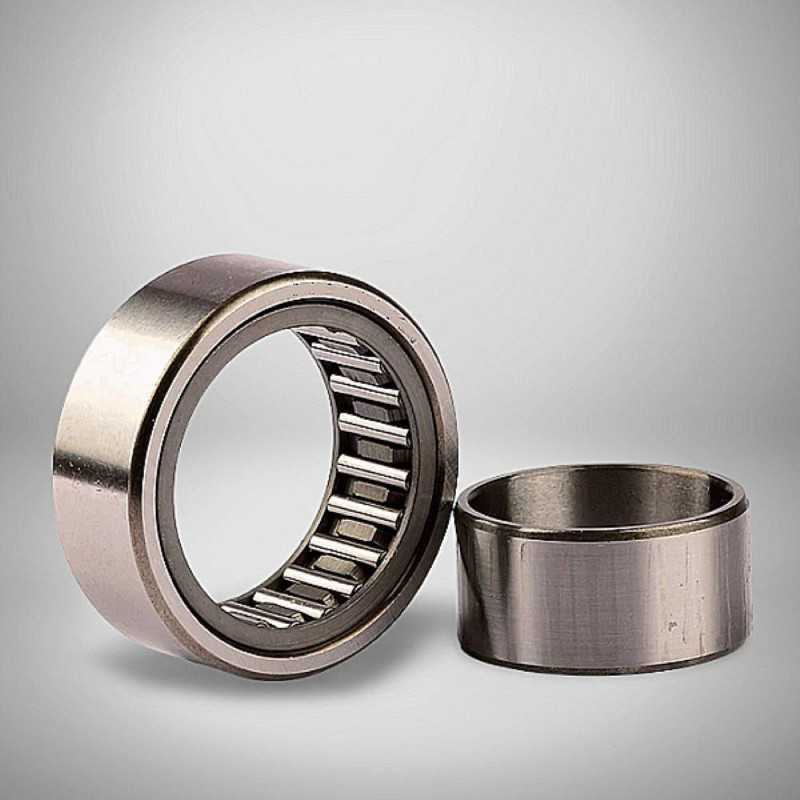

Needle Roller Bearing with Inner Ring NKI 22/16 RICH - 22 x 34 x 16 mm with Steel Cage
The NKI 22/16 RICH is a needle roller bearing that comes complete with an inner ring. This design makes it suitable for applications where the shaft cannot be hardened or ground to serve as a raceway, providing a ready-to-mount solution. These bearings are known for their high radial load capacity and their ability to operate effectively in compact arrangements. The precision-machined needle rollers are guided by a robust steel cage, which ensures accurate spacing and smooth operation, even under significant loads. The dimensions of this bearing are 22 mm inner diameter, 34 mm outer diameter, and 16 mm width, with an approximate weight of 0.056 kg. Manufactured in China by RICH.
Key Specifications:
- Type: Needle Roller Bearing with Inner Ring
- Dimensions: 22 mm inner diameter x 34 mm outer diameter x 16 mm width
- Weight: 0.056 kg
- Cage Material: Steel
- Country of Origin: China
- Brand: RICH
Key Advantages:
- High Radial Load Capacity
- Integrated Inner Ring - Ideal when the shaft cannot be used as a raceway.
- Compact Design
- Smooth and Reliable Operation due to the steel cage.
- Durable Construction
Data sheet
Inner Diameter
22
Outer Diameter
34
Width
16
Weight
0,056
Roller Rows
Single Row
Clearance
CN (Normal)
Category
Needle Roller Bearing with Inner Ring
