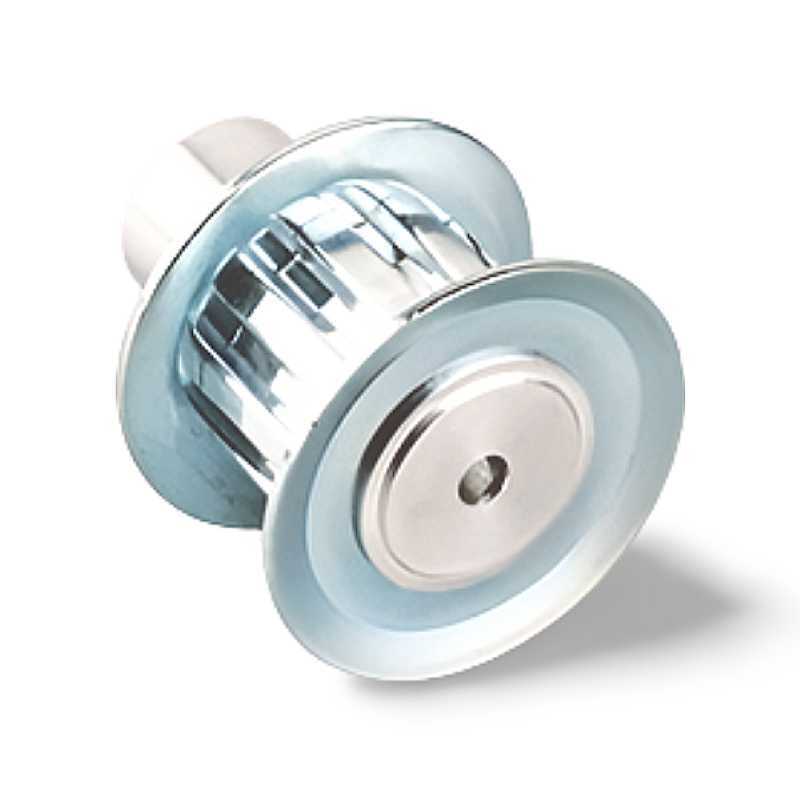

10-XL-037 RICH Pulley 15,66x14,3

RICH Pulley 10-XL-037, aluminium, with hub and flanges, diameter 15.66 mm, length 14.3 mm, 10 teeth.

RICH
PD10XL037
€0.86
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

10-XL-037 RICH Pulley Diameter 15.66 mm, Length 14.3 mm

Technical Specifications

  • Catalog Code: 10-XL-037
  • Brand: RICH
  • Type: Pulley with Flanges
  • Profile: XL
  • Belt Width (bo): 9.53 mm (3/8")
  • Material: Aluminium
  • Outer Diameter (S): 15.66 mm
  • Length (W): 14.3 mm
  • E [mm]: 23
  • H [mm]: 10
  • Y [mm]: 25
  • Z [mm]: 10.7
  • R [mm]: 16.17
  • Number of Teeth: 10
  • Execution: 1
  • Mounting: With Hub, Pulley with Center Holes
  • Features: Pulley with Flanges
  • Weight: 0.007 kg
  • Country of Origin: China

Key Features

  • Designed for XL profile belts with width 9.53 mm (3/8").
  • Lightweight aluminium construction for reduced inertia.
  • Compact pulley with hub and flanges for secure belt guidance.
  • Center holes for precise mounting.

Data sheet

Outer Diameter
15,66
Width
14,3
