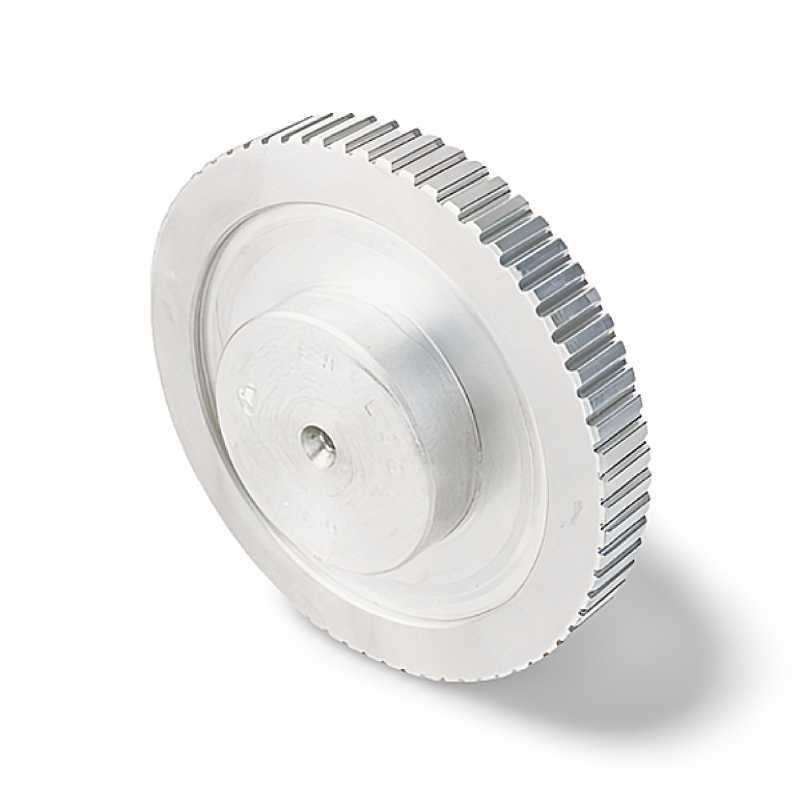

68-XL-037 RICH Pulley 109,45x14,3
68-XL-037 RICH Pulley Diameter 109.45 mm, Length 14.3 mm
Technical Specifications
- Catalog Code: 68-XL-037
- Brand: RICH
- Type: Pulley
- Profile: XL
- Belt Width (bo): 9.53 mm (3/8")
- Material: Aluminium
- Outer Diameter (S): 109.45 mm
- Length (W): 14.3 mm
- H [mm]: 52
- Y [mm]: 25
- Z [mm]: 10.7
- R [mm]: 109.96
- U [mm]: 84
- Number of Teeth: 68
- Execution: 3A
- Mounting: With Hub, Pulley with Center Holes
- Features: No Flange
- Weight: 0.37 kg
- Country of Origin: China
Key Features
- Designed for XL profile belts with width 9.53 mm (3/8").
- Lightweight aluminium construction for reduced inertia.
- Compact pulley with hub and center holes for precise mounting.
- No flange design for specific applications requiring open belt guidance.
