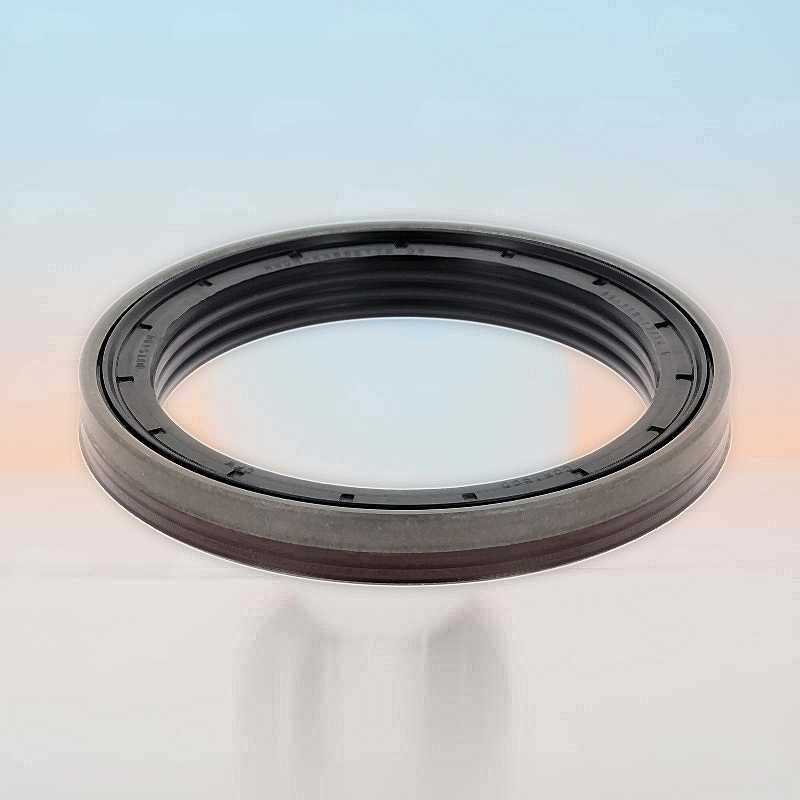

85x110x13/14.5 FPM RICH Cassette Seal - 85 x 110 x 13/14.5 mm

OE Reference / Interchange:

CORTECO 12017093B | CLAAS 02132651 | CLAAS 02133261 | FENDT U931303810000 | FENDT U954300320000

Technical Specifications:

• Catalog Code: 85x110x13/14.5 FPM RICH
• Brand: RICH
• Type: Cassette Seal (Wheel Hub / Axle Seal)
• Inner Diameter: 85 mm
• Outer Diameter: 110 mm
• Width 1: 13 mm
• Inner Ring Width (Total): 14.5 mm
• Sealing Material: FPM Fluoro Rubber (Viton)
• Temperature Range: -20°C to 200°C
• Weight: 0.155 kg
• Country of Origin: China

Product Overview:

The 85x110x13/14.5 FPM RICH is a high-specification cassette seal designed for specialized agricultural and heavy-duty machinery, specifically optimized for Fendt and Claas equipment. This "labyrinth" style seal represents an advanced sealing solution where the sealing lips run on an internal specialized surface rather than directly on the shaft. This design effectively creates a self-contained unit that is highly resistant to extreme external contamination such as mud, slurry, and fine dust. A significant upgrade in this model is the use of FPM (Fluoro Rubber), which allows the seal to operate reliably in high-temperature environments up to 200°C and provides superior chemical resistance against modern synthetic lubricants. By integrating the wear sleeve into the seal itself, it eliminates the need for expensive shaft recovery or hardening, making it an ideal choice for drivetrain and wheel hub maintenance in demanding farming conditions.

Key Performance Advantages:

• High-Temperature Resistance: FPM material ensures long-term elasticity and sealing integrity even under intense thermal stress.
• Advanced Labyrinth Protection: Multiple sealing lips provide a complex barrier that prevents the ingress of abrasive particles and moisture.
• Reduced Maintenance Costs: The integrated running surface protects the shaft from wear, extending the life of the entire axle assembly.
• Direct Agricultural OE Match: Precision-engineered to meet the strict technical requirements of Fendt and Claas drivetrain systems.

Transparency Note: This seal is manufactured under the RICH brand. The OE references are provided for identification purposes and do not imply affiliation with the original equipment manufacturer. This RICH component is manufactured in China.
