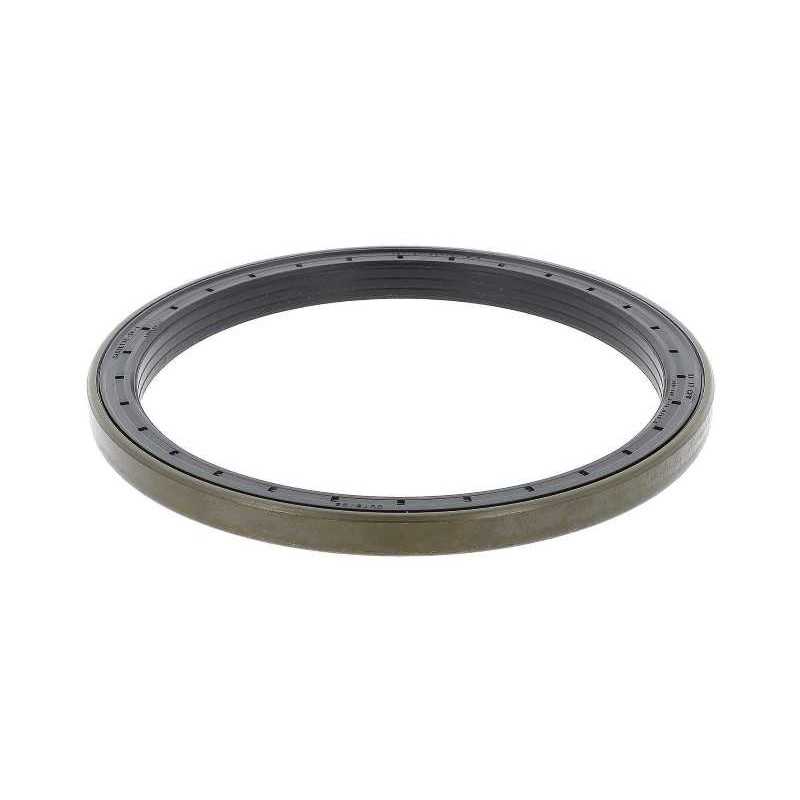

Oil Seal RICH 167,8x198x13/15,5 KASSETTE NBR 01027784B RICH
zoom_out_map
Oil Seal RICH 167,8x198x13/15,5 KASSETTE NBR 01027784B RICH

Oil Seal RICH 167,8x198x13/15,5 KASSETTE NBR

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 167.8 x 198 x 13/15.5 NBR KASSETTE
Material: NBR Nitrile Rubber (-30÷100°C)
Brand: RICH
Origin: China
RICH
01027784B

Volume discounts

Quantity Unit price
10 €20.05
20 €19.10
50 €18.14
100 €17.19
€22.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 167.8 x 198 x 13/15.5 NBR KASSETTE

OE References:

  • DEUTZ-FAHR: 04415117
  • JOHN DEERE: AL154055, AL81842
  • ZF: 0734309281, 0734309331, 0734309386, 0734309401

Technical Specifications:

  • Brand: RICH
  • Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
  • Inner Diameter (d): 167.8 mm
  • Outer Diameter (D): 198 mm
  • Base Height (h1): 13 mm
  • Total Height (h2): 15.5 mm
  • Material: NBR (Nitrile Butadiene Rubber)
  • Temperature Range: -30°C to +100°C
  • Country of Origin: China

Performance Characteristics:

  • Integrated Wear Track: The KASSETTE design features an internal contact surface, ensuring the sealing lips do not act directly on the 167.8 mm shaft.
  • Axle Surface Preservation: By isolating the sealing friction internally, this unit eliminates shaft grooving and removes the requirement for specialized shaft recovery sleeves or resurfacing.
  • NBR Thermal Tolerance: The Nitrile compound is engineered for stability in standard industrial and agricultural operating temperatures, resisting degradation from mineral-based transmission oils.
  • Multi-Stage Labyrinth Seal: Designed with a complex lip geometry to actively block heavy particulate matter, mud, and moisture ingress in off-road environments.
  • Precision Static Sealing: The 198 mm outer diameter ensures a robust press-fit within ZF and John Deere axle housings, preventing oil bypass at the static interface.

Transparency Note: This product is manufactured under the RICH brand. All OE references (Deutz-Fahr, John Deere, ZF) are provided exclusively for identification and compatibility purposes and do not imply association with the original equipment manufacturers.

Data sheet

Inner Diameter
167,8
Outer Diameter
198
Width
13/15,5
Weight
0,428
Compatible with Corteco
01027784B
