Oil Seal RICH 42x70x8/14 ACM 01036272B RICH
zoom_out_map

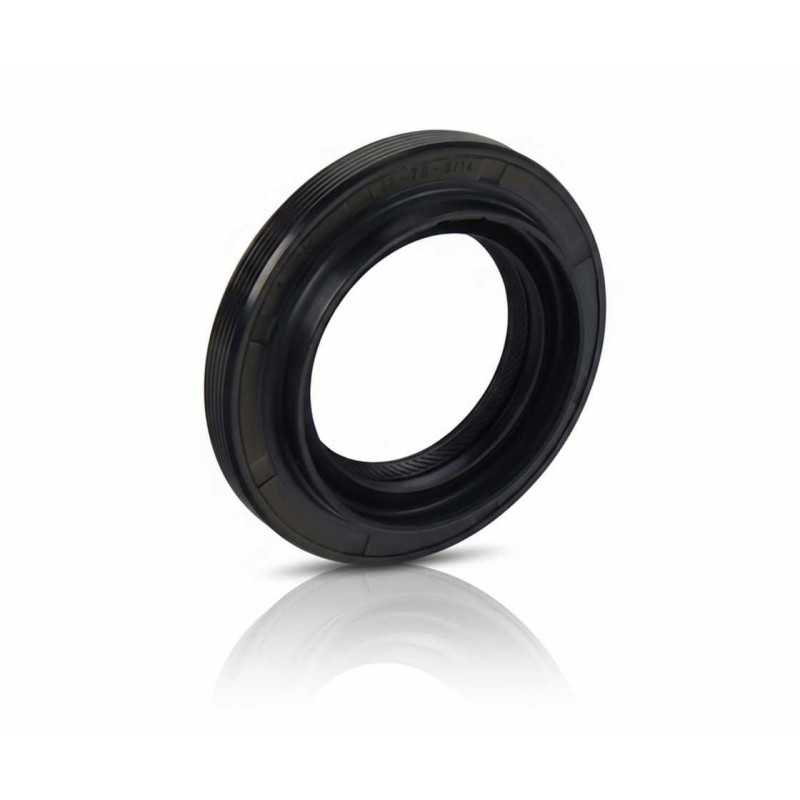

Oil Seal RICH 42x70x8/14 ACM 01036272B RICH

Oil Seal RICH 42x70x8/14 ACM

Type: Oil Seal / Shaft Seal / Sealing Ring (Right Twist)
Model: RICH 42 x 70 x 8/14 ACM
Material: ACM Polyacrylate Rubber (-30÷150°C)
Brand: RICH
Origin: China
RICH
01036272B

Volume discounts

Quantity Unit price
10 €18.00
20 €17.14
50 €16.28
100 €15.42
€19.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 42 × 70 × 8/14 ACM

OE References:

  • AUDI / SEAT / SKODA / VW: 281525275A
  • CORTECO: 01036272B

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring
  • Swirl Type: Right-hand twist (R)
  • Inner Diameter (d): 42 mm
  • Outer Diameter (D): 70 mm
  • Base Height (h1): 8 mm
  • Total Height (h2): 14 mm
  • Material: ACM (Polyacrylate Rubber)
  • Weight: 0.04 kg
  • Temperature Range: -30°C to +150°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on ACM.
  • Thermal Classification: Operating range consistent with ACM material specifications.
  • Profile Geometry: Radial shaft sealing structure with right-hand hydrodynamic twist.
  • Structural Layout: Molded sealing lip with integrated swirl profile.
  • Dimensional Format: 42 × 70 × 8/14 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
42
Outer Diameter
70
Width
8 // 14
Weight
0,04
Compatible with Corteco
01036272B
