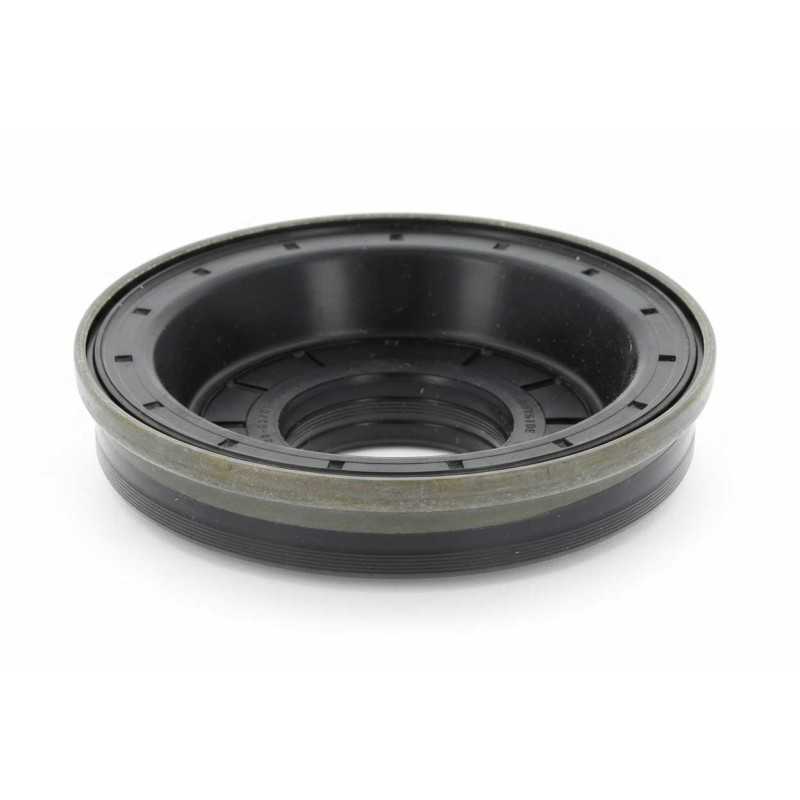

Oil Seal RICH 35x92/98x13/27 KASSETTE NBR 12014654B RICH
zoom_out_map
Oil Seal RICH 35x92/98x13/27 KASSETTE NBR 12014654B RICH

Oil Seal RICH 35x92/98x13/27 KASSETTE NBR

Type: Oil Seal / Shaft Seal / Sealing Ring (KASSETTE)
Model: RICH 35 x 92/98 x 13/27 NBR KASSETTE
Material: NBR Nitrile Rubber (-30÷100°C)
Brand: RICH
Origin: China
RICH
12014654B

Volume discounts

Quantity Unit price
10 €13.00
20 €12.38
50 €11.76
100 €11.14
€14.36
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Oil Seal RICH 35 × 92/98 × 13/27 NBR KASSETTE

OE References:

  • CARRARO: 134339, 247534A1
  • MASSEY FERGUSON: 053974R1, 3785540M1
  • NEW HOLLAND: 47123921
  • CLAAS: 6000103332
  • FENDT: F339300020060
  • CORTECO: 12014654B

Technical Specifications:

  • Brand: RICH
  • Type: Oil seal / Shaft seal / Sealing ring (KASSETTE)
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 92 mm
  • Flange Diameter (D1): 98 mm
  • Base Height (h1): 13 mm
  • Total/Inner Ring Height (h2): 27 mm
  • Material: NBR (Nitrile Butadiene Rubber)
  • Weight: 0.26 kg
  • Temperature Range: -30°C to +100°C
  • Country of Origin: China

Performance Characteristics:

  • Material Type: Elastomeric sealing element based on NBR.
  • Thermal Classification: Operating range consistent with NBR material specifications.
  • Profile Geometry: KASSETTE unitized labyrinth configuration with integrated flange.
  • Structural Layout: Integrated internal wear sleeve with multi‑lip arrangement.
  • Dimensional Format: 35 × 92/98 × 13/27 mm configuration.

Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
35
Outer Diameter
92/98
Width
13/27
Weight
0,26
Compatible with Corteco
12014654B
