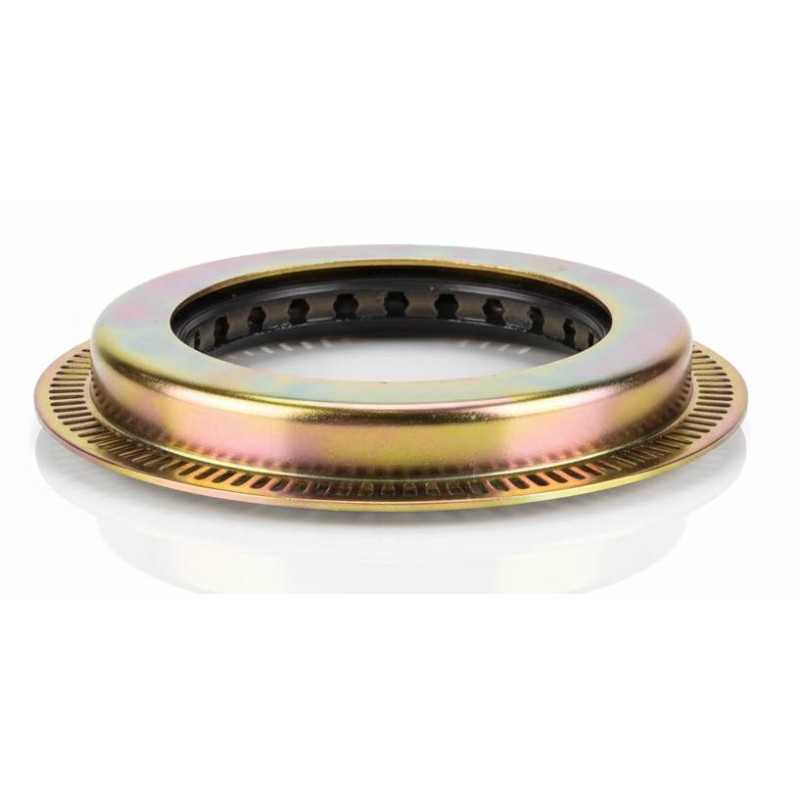

Oil Seal RICH 100 × 140 × 16/22 FPM KOMBI
OE References:
- DAF: 1334961
- CORTECO: 01026332B
Technical Specifications:
- Brand: RICH
- Type: Oil seal / Shaft seal / Sealing ring (KOMBI)
- Configuration: Double lip seal
- Inner Diameter (d): 100 mm
- Outer Diameter (D): 140 mm
- Flange Diameter (D1): 166 mm
- Base Height (h1): 16 mm
- Inner Ring Width (h2): 22 mm
- Material: FPM Fluoroelastomer
- Weight: 0.42 kg
- Temperature Range: -20°C to +200°C
- Country of Origin: China
Performance Characteristics:
- Material Type: Elastomeric sealing element based on FPM.
- Thermal Classification: Operating range consistent with FPM material specifications.
- Profile Geometry: KOMBI unitized radial shaft seal with external flange.
- Structural Layout: Integrated multi-lip system with specialized flange for precision seating and maximum exclusion of contaminants in heavy-duty axle environments.
- Dimensional Format: 100 × 140 × 16/22 mm configuration.
Transparency Note: This product is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
