1755/1729 RICH 22,225x56,896x19,368 1755/1729 RICH
zoom_out_map
1755/1729 RICH 22,225x56,896x19,368 1755/1729 RICH

1755/1729 RICH 22,225x56,896x19,368

The 1755/1729 RICH single row tapered roller bearing (22.225 x 56.896 x 19.368 mm) handles high combined radial and axial loads, features a separable design, and ensures smooth operation in demanding applications.

RICH
1755/1729
€5.29
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

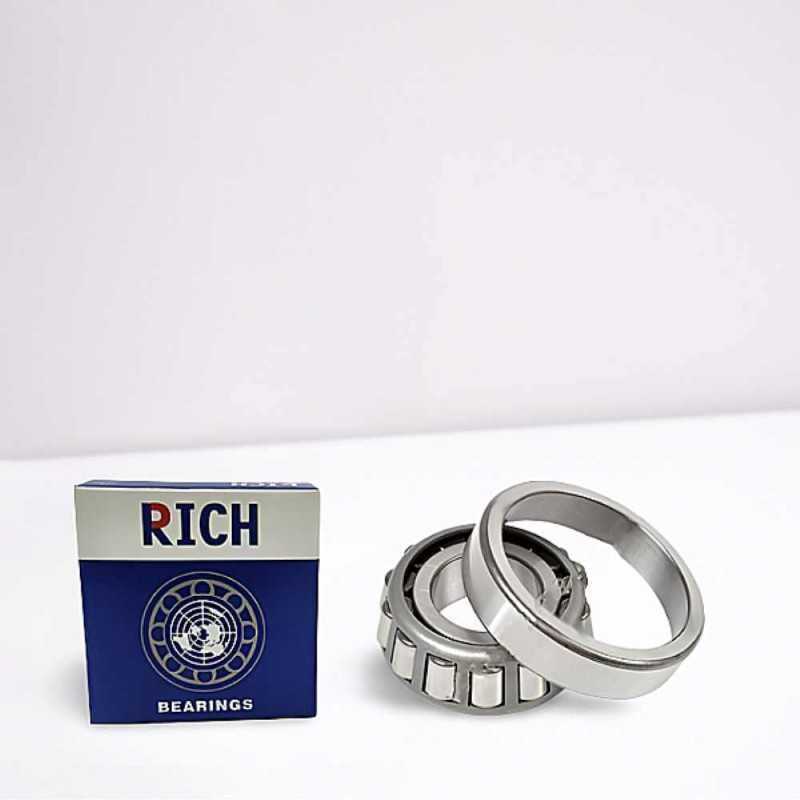

1755/1729 RICH Single Row Tapered Roller Bearing - 22.225 x 56.896 x 19.368 mm

Technical Specifications:

  • Product Type: Single Row Tapered Roller Bearing
  • Model Designation: 1755/1729
  • Brand: RICH
  • Bore Diameter (d): 22.225 mm
  • Outer Diameter (D): 56.896 mm
  • Total Width (T): 19.368 mm
  • Inner Ring Width (B): 19.837 mm
  • Outer Ring Width (C): 15.875 mm
  • Weight: 0.254 kg
  • Country of Origin: China

The 1755/1729 RICH is a heavy-duty single row tapered roller bearing designed to efficiently manage high combined radial and axial loads simultaneously. The geometry of the tapered rollers and raceways ensures true rolling motion and reduces wear. With dimensions of 22.225 mm bore, 56.896 mm outer diameter, and a 19.368 mm total width (T), this bearing is crucial for applications such as gearboxes, differentials, and wheel hubs. A key advantage is its separable design, allowing the inner ring assembly (cone, 1755) and the outer ring (cup, 1729) to be mounted independently, which simplifies assembly and maintenance. For axial load support in both directions, two such bearings are typically required and adjusted against each other.

Key Performance Advantages:

  • High Combined Load Capacity: Optimized geometry handles substantial simultaneous radial and single-direction axial forces.
  • Separable Components: Inner and outer rings can be fitted separately, streamlining installation and servicing.
  • Precision Rolling: Ensures accurate shaft guidance and high operational reliability.
  • RICH Quality: A durable, robust component built for longevity in demanding industrial and transport applications.

Data sheet

Inner Diameter
22,225
Outer Diameter
56,896
Width
19,368
Weight
0,255
Category
Single Row Tapered Roller Bearing
