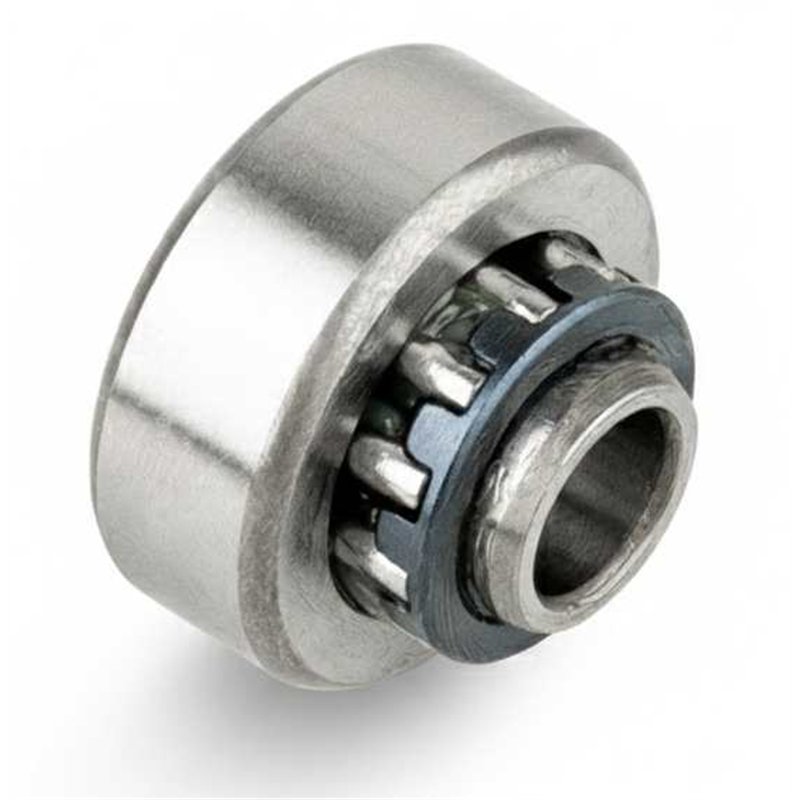

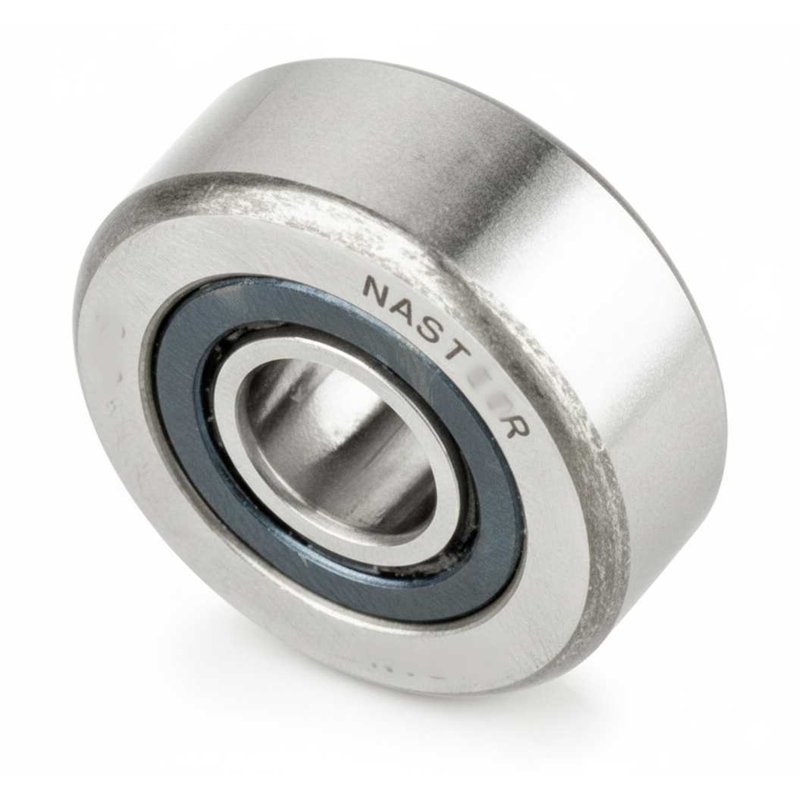

NAST15R RICH 15x35x12

NAST15R RICH – Yoke Roller – 15 x 35 x 12 mm

Technical Specifications:

• Type: Yoke roller
• Brand: RICH
• Model Designation: NAST15R
• Inner Diameter (d): 15 mm
• Outer Diameter (D): 35 mm
• Width (B): 12 mm
• Outer Ring Width (C): 11.8 mm
• Outer Ring Profile: Crowned / Rounded outer ring (R)
• Cage Material: Steel
• Sealing: None (Open execution)
• Weight: 0.068 kg
• Country of Origin: China

Construction Details:

• Components: Thick-walled crowned outer ring, inner ring, steel cage assembly, and precision rolling elements.
• Configuration: Yoke-type track roller without integrated stud, designed for mounting on shafts or studs, featuring an open architecture and a rounded outer profile.
• Rolling Elements: Needle roller complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
