SL 15/40/14,4 2RS RICH 15x40x14,4

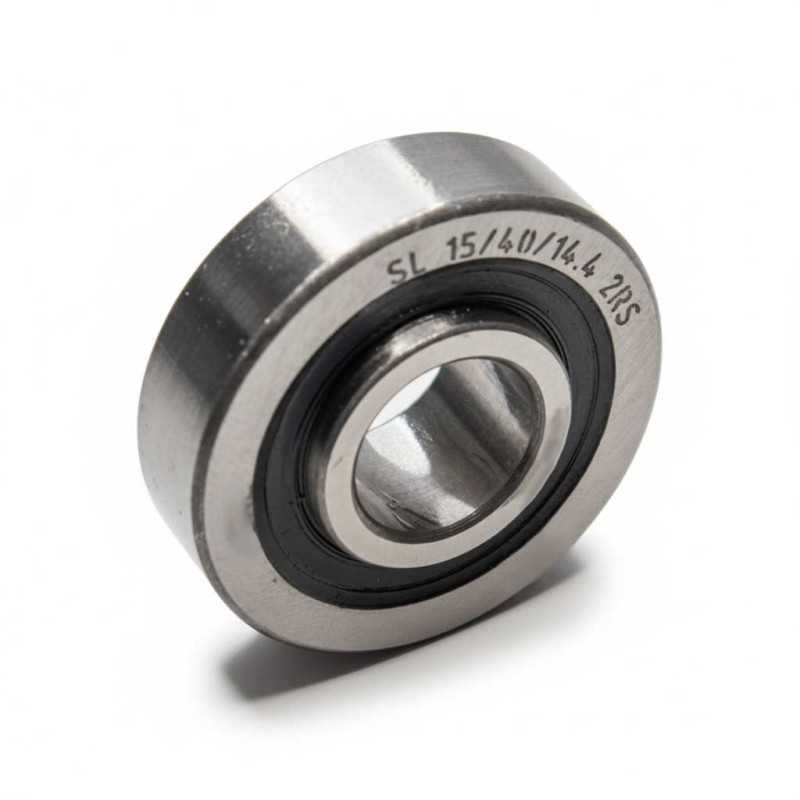

SL 15/40/14.4 2RS RICH – Track Roller – 15 x 40 x 14.4 mm

OE References:

• UNIA: 8245-511-005-272

Technical Specifications:

• Type: Track roller
• Brand: RICH
• Model Designation: SL 15/40/14.4 2RS
• Inner Diameter (d): 15 mm
• Outer Diameter (D): 40 mm
• Width (B): 14.4 mm
• Outer Ring Width (C): 11 mm
• Outer Ring Profile: Crowned / Rounded outer ring
• Sealing: Double-sided rubber non-contact seal (2RS)
• Weight: 0.075 kg
• Country of Origin: China

Construction Details:

• Components: Thick-walled crowned outer ring, inner ring, cage assembly, precision rolling elements, and double-sided rubber non-contact seals.
• Configuration: Yoke-type track roller execution featuring a rounded outer profile designed to optimize track alignment and lower edge loading under heavy structural configurations.
• Rolling Elements: Ball complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
