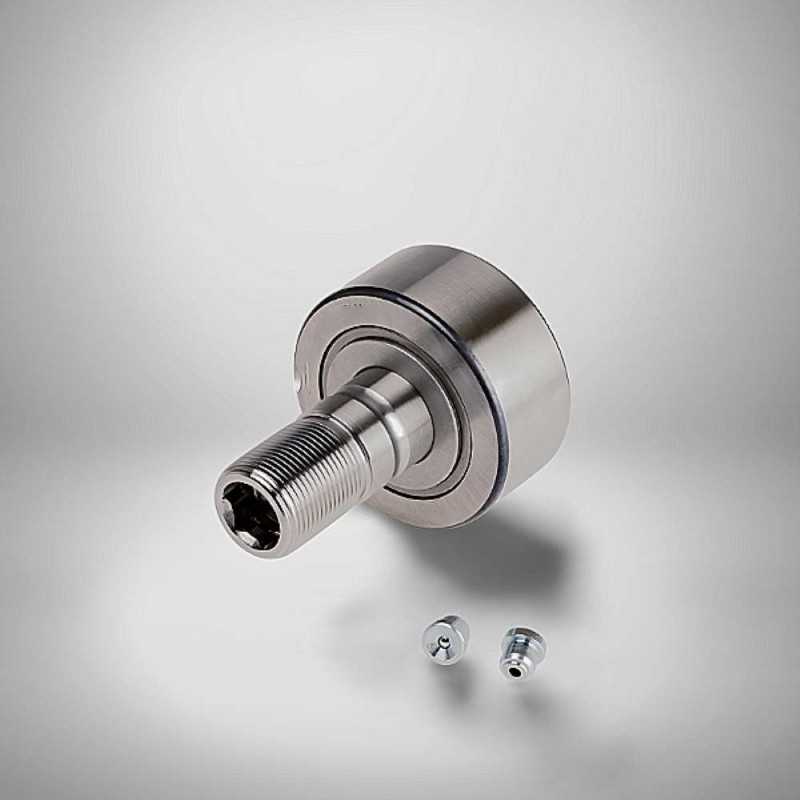

NUKR62 RICH Stud Type Track Roller - 24 x 62 x 28 mm

The NUKR62 RICH is a stud type track roller designed for demanding linear motion and cam follower applications. This roller has key dimensions of 24 mm inner diameter (of the integrated bearing), 62 mm outer diameter, and a roller width of 28 mm. The bearing length (B1) is 80 mm. It features no cage and a rounded outer ring. Sealing is provided by labyrinths on both sides, which are suitable for higher temperatures and offer less friction. The thread size of the stud is M24x1.5. It weighs approximately 0.775 kg and is made in China. Stud type track rollers are designed to run on tracks or cam surfaces and are mounted via their integral stud. The rounded outer ring helps to distribute loads and reduce edge stress. The labyrinth seals offer non-contact sealing, which is advantageous in high-speed or high-temperature environments where lower friction is desired. The absence of a cage indicates a full complement of rolling elements, maximizing load capacity.

Key Specifications:

  • Roller Type:** Stud Type Track Roller
  • Model:** NUKR62 RICH
  • Inner Diameter (d): 24 mm (of the integrated bearing)
  • Outer Diameter (D): 62 mm (of the roller)
  • Roller Width (B): 28 mm
  • Bearing Length (B1): 80 mm
  • Cage Material:** None
  • Outer Ring Shape:** Rounded
  • Sealing:** Labyrinths on both sides (suitable for higher temperatures and less friction)
  • Thread Size:** M24x1.5
  • Weight:** 0.775 kg
  • Country of Origin:** China

Key Features:

  • Stud Mounting:** Allows for easy and secure attachment.
  • Rounded Outer Ring:** Helps to distribute loads and reduce edge stress.
  • Full Complement Rollers (No Cage):** Maximizes radial load capacity.
  • Labyrinth Seals:** Provides non-contact sealing for high-speed or high-temperature applications with less friction.
  • Robust Design:** Suitable for demanding linear motion systems.
  • Versatile Application:** Used in various automation, material handling, and motion control systems.
  • Manufacturing Origin:** Made in China.
