  • NUKR90 X RICH 30x90x35 NUKR90X RICH

NUKR90 X RICH 30x90x35

Ensure reliable tracking with the NUKR90.X RICH stud type track roller.

RICH
NUKR90X
€46.04
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

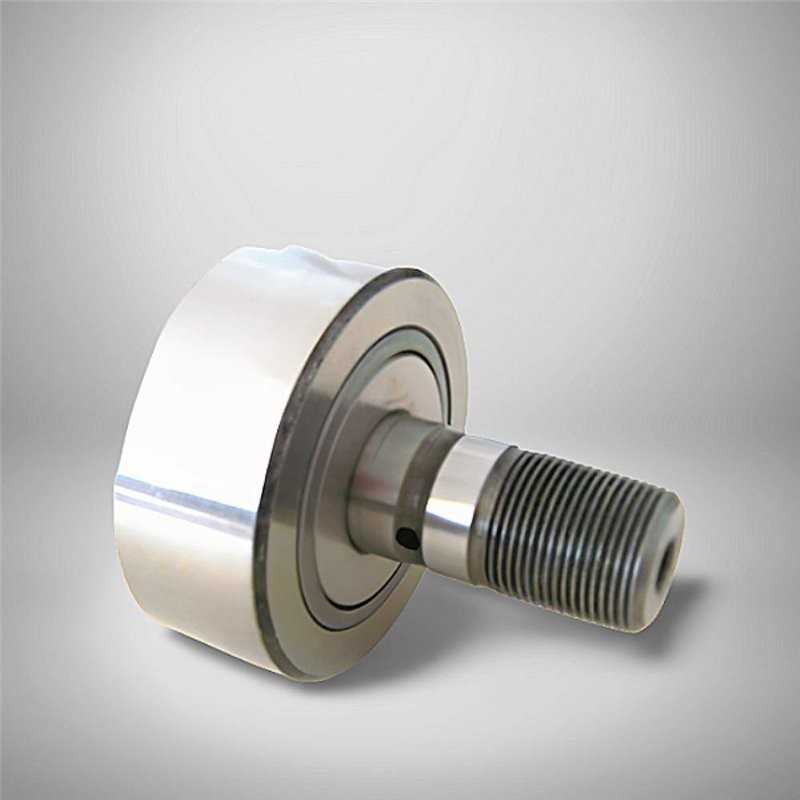

NUKR90.X RICH Stud Type Track Roller - 30 x 90 x 35 mm, Sealed

Technical Specifications:

  • Bearing Type: Stud Type Track Roller, Concentric Stud
  • Model Designation: NUKR90.X
  • Brand: RICH
  • Dimensions: 30 x 90 x 35 mm
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 90 mm
  • Width (B): 35 mm
  • Bearing Length (B1): 100 mm
  • Cage Type: None (Full Complement)
  • Rounded Outer Ring: No (Cylindrical)
  • Sealing: Labyrinths on both sides (for higher temperatures and less friction)
  • Thread: M30x1.5
  • Weight: 2.228 kg
  • Country of Manufacture: China

The NUKR90.X RICH stud type track roller, meticulously manufactured by RICH in China, is engineered for precise motion control and reliable performance in demanding industrial applications. With precise dimensions of 30 mm inner diameter, 90 mm outer diameter, and a width of 35 mm, this track roller has an overall bearing length of 100 mm and features an M30x1.5 thread for secure mounting. It is designed with a cylindrical outer ring, making it suitable for direct running on flat raceway surfaces, and features a full complement of rolling elements, maximizing its load-carrying capacity. Equipped with labyrinths on both sides, this track roller is optimized for higher temperatures and reduced friction, ensuring effective contamination protection and extended service life. Weighing 2.228 kg, the NUKR90.X RICH track roller provides consistent and long-lasting operation in critical machinery.

Key Performance Advantages:

  • Concentric Stud Design: Ensures high precision and ease of installation.
  • Cylindrical Outer Ring: Optimized for direct running on flat raceway surfaces.
  • Full Complement Design: Maximizes load-carrying capacity for demanding applications.
  • Advanced Labyrinth Seals: Provides effective sealing for higher temperatures and reduced friction.
  • High Radial Load Capacity: Engineered for robust performance in track and cam mechanisms.
  • Precision Thread (M30x1.5): Ensures secure and stable mounting.
  • RICH Quality: Manufactured in China to high standards, ensuring optimal performance.

Data sheet

Inner Diameter
30
Outer Diameter
90
Width
35
Weight
2,22
