• New
F-229817.01 RICH 16x35x18 F-229817PWKR RICH
zoom_out_map
F-229817.01 RICH 16x35x18 F-229817PWKR RICH

F-229817.01 RICH 16x35x18

Type: Stud Type Track Roller
Model: F-229817.01 RICH
Dimensions: 16 x 35 x 18 mm (B1: 39 mm)
Brand: RICH
Origin: China
RICH
F-229817PWKR
€99.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

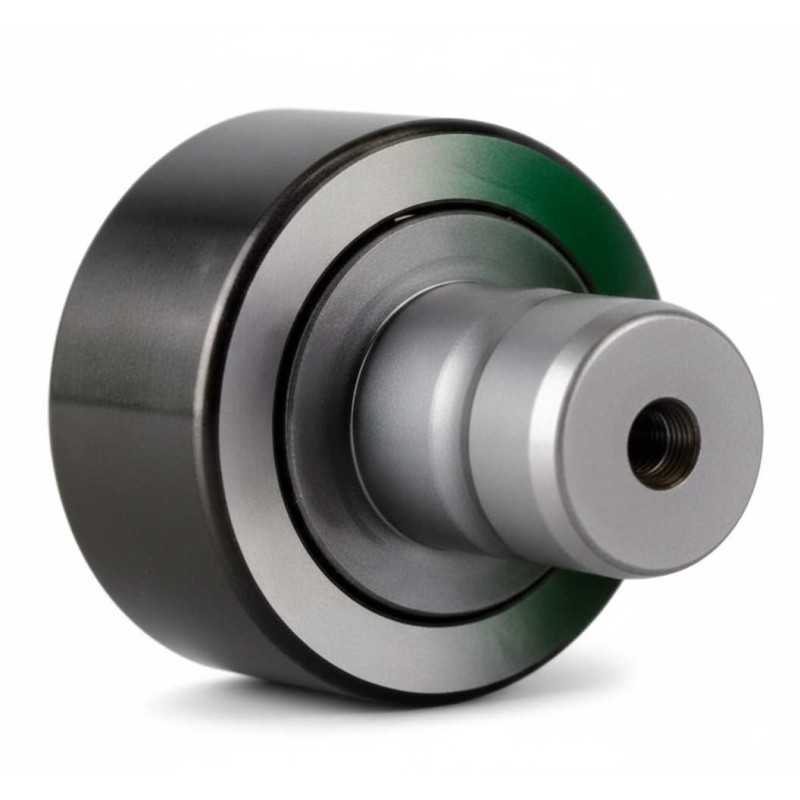

F-229817.01 RICH – Stud Type Track Roller – 16 x 35 x 18 mm

Technical Specifications:

  • Type: Stud type track roller (Cam Follower)
  • Brand: RICH
  • Model Designation: F-229817.01
  • Stud Diameter (d): 16 mm
  • Outer Diameter (D): 35 mm
  • Outer Ring Width (C): 18 mm
  • Total Length (B1): 39 mm
  • Weight: 0.158 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Heavy-duty stud-type track roller designed with a thick-walled outer ring to withstand high radial loads and repeated shock impacts in motion systems.
  • Load Management: Precision-engineered for linear guidance and cam drive applications, ensuring efficient stress distribution and reduced wear on the mating track surface.
  • Operational Stability: Features an integrated high-strength solid stud for simplified mounting and increased mechanical rigidity within automated machinery and conveyor units.
  • Mechanical Interface: 16 x 35 x 18 mm dimensional format produced to rigorous industrial standards, guaranteeing smooth rotational kinematics and optimized service life.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
16
Outer Diameter
35
Width
18
Weight
0,15
Category
Stud Type Track Roller
